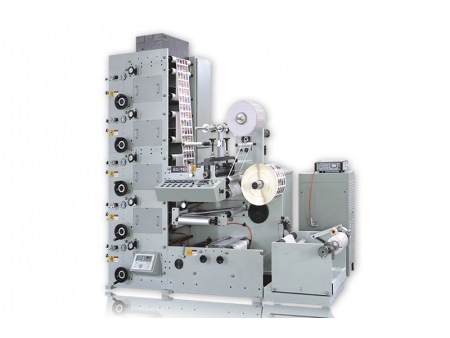

RY-1000 stack type flexo label printing machine is a wide-format printing machine, which is mainly used for printing on paper bags, paper cups, hamburger boxes and others.

The flexo label printing machine is designed with an independent hydraulically controlled rewinder in diameter of 1000mm. After web guide and tension control, CMYK 4-color printing is performed. The flexographic printing equipment comes with a die-cutting function, with its speed up to 60m/min.

If you are interested in stacked flexo label printing machine, please contact us.

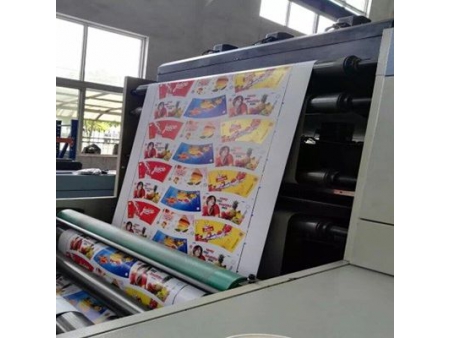

Printing samples
Specifications
Model RY-1000
Max. web width 1000mm
Max. printing width 1000mm
Printing repeat 180~380mm
Color 2-6
Thickness of substrate 0.1~0.3mm
Machine speed 10-60m/min
Max. unwind diameter 1300mm
Max. rewind diameter 1300mm
Main motor power 48kW
Power supply 3-phase, 380V/50hz
Overall Dimensions (LxWxH) 4800x2250x2250mmm
Machine weight about 4000kg
