Clicker Press
Request a Quote
Professional footwear machinery manufacturer and complete footwear manufacturing solution provider

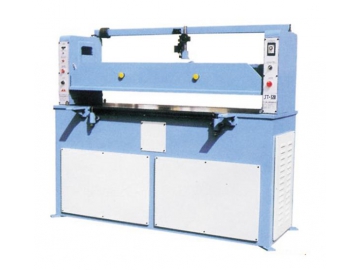

Chengben clicker presses are mainly used in the die cutting process of various footwear materials or other leather products. The main shaft, pull rod, and piston are all constructed from superior steel to maximize the machine’s durability. The machine utilizes the inertia of a flywheel to cut material, so as to minimize energy consumption.
Specification
| Machine model | CB62-1600 | CB62-1200 | CB62-1000 |
| Maxium cutting force (kN) | 250 | 200 | 200 |
| Cutting stroke (mm) | 10-100 | ||
| Motor power (kW) | 4 | 3 | 2.2 |
| Table area (mm) | 1550*580 | 1150*600 | 960*700 |
| Shipping dimensions (L*W*H)(mm) | 2200*750*1200 | 1800*750*1200 | 1600*800*1200 |
| Net weight (kg) | 1050 | 900 | 850 |
