DTN Press Style Spot/Projection Welder

DTN Press Style Spot/Projection Welder
DTN Press Style Spot/Projection Welder
DTN Press Style Spot/Projection Welder
DTN Press Style Spot/Projection Welder
DTN Press Style Spot/Projection Welder
Request a Quote

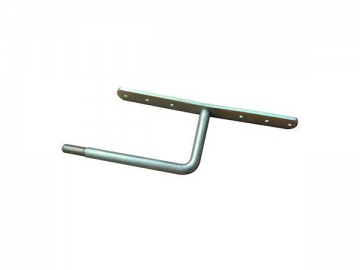

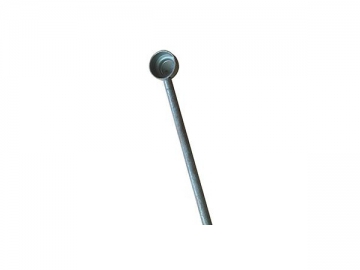

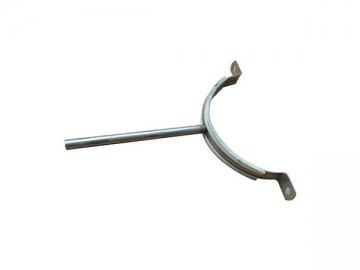

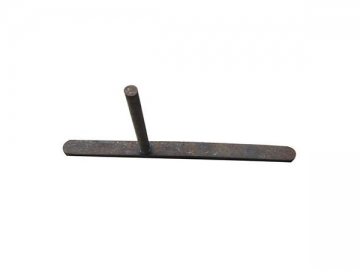

The DTN press style spot/projection welder is specially designed with horizontally mounted cylinders, which optimize the performance of spot welding or projection welding on T-shaped workpieces.

Features
  • Digital setting and display of all operating parameters like weld voltage, power setting, etc.
  • In-memory data storage to prevent accidental data loss.
  • Voltage fluctuation monitoring to prevent it from damaging your data.
  • High secondary volts ensure a short weld time to fit different welding requirements of special materials.
  • Adjustable stroke air cylinder and speed control valves to control up and down ram movement.
  • 40 sets of welding parameters are under microprocessor precision control.
  • Error management is adopted for general warnings and major faults through clear messages.
Parameter
Model DN-80 DN-100 DN-160 DN-200 DN-250 DN-315 DN-400
Item Unit
Rated voltage V 380
Rated frequency HZ 50/60
Rated capacity KVA 80 100 160 200 250 315 400
Rated duty cycle % 30
Insulation class B
Maximum secondary short circuit current A 30000 25000 41000 46000 53000 58000 64000
Maximum welding power KVA 80 100 160 200 250 315 400
Maximum pressure N 10000 10000 15600 15600 20000 20000 20000
Stroke mm 70
Input air pressure Mpa 0.5
Cooling water flow L/min 7 7 7 10 10 10 10
Arm extension length mm 420-500
