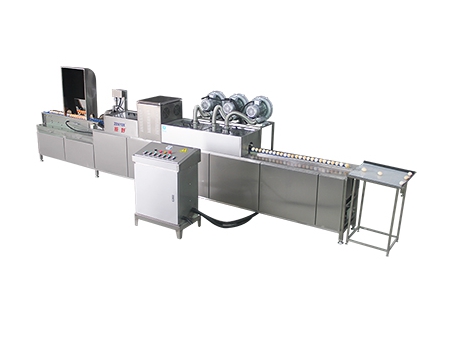

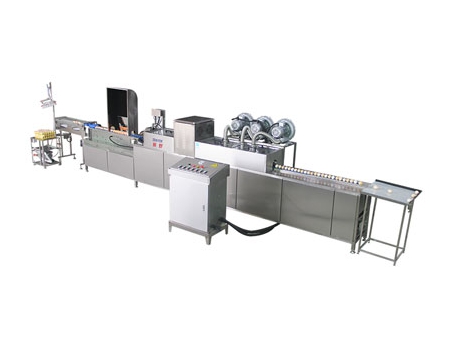

201A Egg Washer (5000 EGGS/HOUR)
The ZENYER 201A egg washer can process 5000 eggs each hour and satisfies egg cleaning requirements for medium-sized cage-free farms. This model is capable of loading, candling, sanitizer spraying, brushing, drying steps and selective printing services upon request.
The 201A egg washer is very simple to use, you can also combine it with the ZENYER or for a higher production efficiency assembly line.
| Product name | Egg cleaning machine |
| Product code | 201A |
| Model | ZYX-JS1-2 |
| Capacity | 5000 eggs/hour |
| Material | Stainless steel |
| Power | 8.8 KW |
| Voltage | 220V,50HZ, single phase 380V,50HZ, three phase |
| Dimension(L×W×H) | 5.6 ×0.64×1.4 M |
| Net weight | 600KG |
| Gross weight | 750KG |
| Function | Manual loading( vacuum lift accumulator), candling, sanitizer spraying, brushing, drying, (printing),manual collection conveyor (or attach with egg grader). |

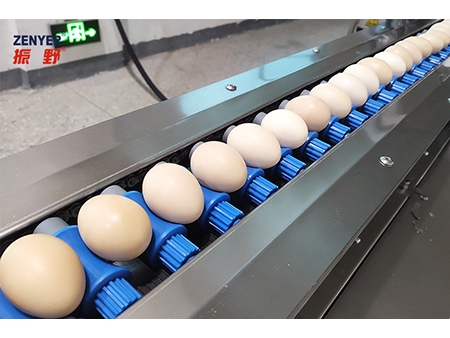

- Single row conveyor & candling
- Accumulator (optional)
- Sanitizer
- Washing
- Drying
- Printing
- Manual packing lane with UV sterilizing (optional)
Workers place eggs on the loading ramp.

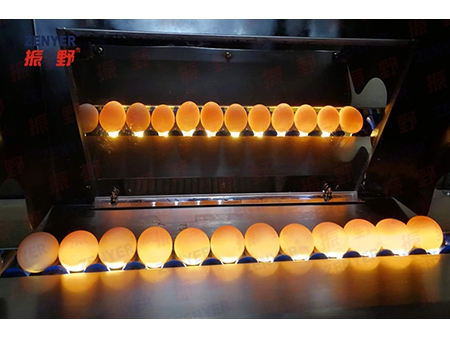

Eggs will run through LED lights for candling purpose before dropping into the egg washer, meaning workers can easily pick out any unqualified eggs such as leaking or cracking ones.
Eggs are vacuum lifted and loaded onto the 604AS accumulator using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the single row conveyor of 201A egg washer.
Sanitizer equipment sprays disinfectant or detergent to eggs.
- Before washing
- After washing
Eggs are well cleaned by brushes with warm water spraying. Brush modules are flexible, and adjustments can be made on brush distance, position and speed.
Eggs are perfectly dried by drying brush and strong air generated by drying fans.
The ZENYER could be attached at the end of egg washer, you can print your farm name, logo, date, best before date, etc. on eggs.
The UV sterilization unit can be installed on the manual collection conveyor. It takes advantage of the UV disinfection system to sanitize egg shells for maximum food security.
Washed eggs will roll onto the conveyor (motor drive) and will be placed into trays manually.
