Introduction

The QC11Y hydraulic guillotine sheet metal shear's shearing stroke can be adjusted, making it convenient for customers to use.

Parameters
Model 8×4000 12×2500 16×6000 25×2500
Max. Cutting Thickness mm 8 12 16 25
Max. CuttingWidth mm 4000 2500 6000 2500
Anti-strength of Plate N/m² 450 450 450 450
Shearing Angle º 0.5-2 0.5-2.5 0.5-2.5 0.5-3
Back Gauge Range mm 500 750 900 900
Stroke Times min-1 8-14 10-18 5-10 6-14
Throat Depth mm 130 130 100 100
Blade Length mm 4100 2600 6100 2600
Main Motor kw 11 18.5 37 37
Dimension (L)mm 4700 3250 7100 3500
Dimension (W)mm 1840 1800 2460 2150
Dimension (H)mm 2350 2280 2920 2600
2600
Structure

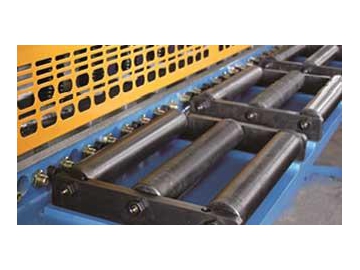

  • Roller feeding (optional)
  • Pneumatic retainer

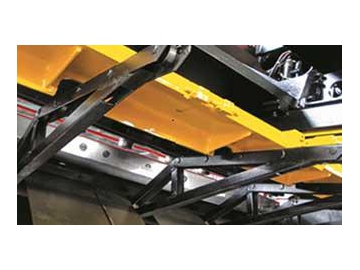

  • Slip device (optional)
Features
  • The shear uses a 3-points roller guide, which ensures there is no resistance in a straight line motion.
  • The blade rack shearing angle can be adjusted in the range.
  • Shearing stroke can be adjusted.
  • The back gauge can be lifted manually when usage of the back gauge is not needed.
  • The machine wall has a pump lubrication device installed, which automatically adds lubrication oil and saves labor.
  • It has an advanced insert hydraulic system, which features a fast integration and easy maintenance.
  • A standard A62S numerical system controls the shear count and back gauge.
  • DAC360 and more CNC controller systems are optional.
