G80 Eye Sling Hook with Cast Latch

G80 Eye Sling Hook with Cast Latch
G80 Eye Sling Hook with Cast Latch
Request a Quote

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Technical Parameters

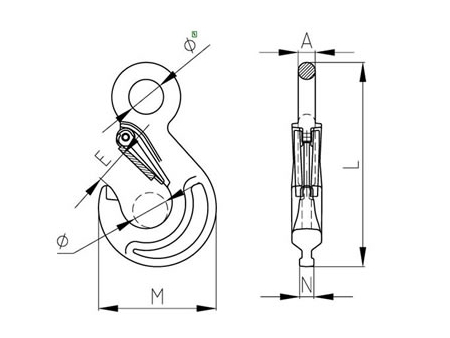

ITEM NO. WEIGHT/KG Working Load Limit (t) Breaking Load (t) A±1 E±l,5 M±2 N±1 L±3 φ±2 φ'±2
6-8 0.3 1.12 4.48 10 18 67 8,5 120 18 20
8-8 0.59 2 8 11 25 91 9.2 153 26 25
10-8 1.23 3.15 12.6 16 30 112 13 188 30 34
13-8 2.29 5.3 21.2 19.5 39 131 16.5 233 37 43
16-8 4.7 8 32 24.5 48 169.5 20.6 294 48 50
