6000mm 400T CNC Press Brake, with DA66T System

6000mm 400T CNC Press Brake, with DA66T System
6000mm 400T CNC Press Brake, with DA66T System
6000mm 400T CNC Press Brake, with DA66T System
Request a Quote

6000mm 400T CNC press brake is integrated with DELEM DA66T 3D CNC control system for increased working efficiency, and a laser guarding system for high safety during the bending process.

Specifications
Model (GENIU) S1240 S25110 S32135 S32220 S40135 S40220 S40320
Bending length(mm) 1250 2500 3200 3200 4000 4000 4000
Pressing force(tons) 40 110 135 220 135 220 320
Distance between side frames(mm) 950 2100 2700 2700 3300 3300 3300
Maximum opening(mm) 380 430 430 460 430 460 560
Maximum stroke(mm) 160 200 200 200 200 200 300
Throat depth (only if C-Frame) 320 400 400 400 400 400 400
Closing speed(mm/s) 180 200 200 180 180 165 160
Maximum working speed*(mm/s) 10 10 10 10 10 10 10
Return speed(mm/s) 150 160 160 150 160 150 125

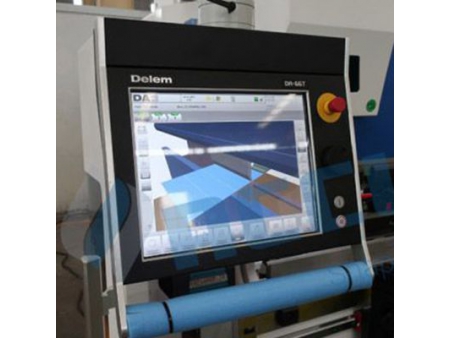

  • DELEM DA66T 3D CNC control system

    DELEM DA66T 3D CNC control system DA66T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, make ability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.

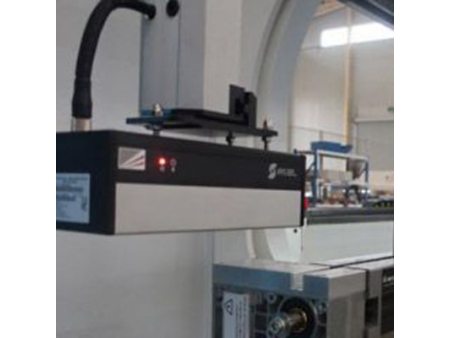

  • Laser guarding system

    LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).
