Request a Quote

Basic information:
Print head: KONICA 512i 13PL
Color: CMYK
Max resolution: 1440dpi
Max printing speed: 75 ㎡/hr
Max printing width: 1.8m (71inch)

Application:
1. SPL-180X –A 512i 13PL Eco-solvent printer is applicable to banner processors with high output requirements.

2. This printing machine is ideal for printing on sublimation fabric.

3. The printer can be applied for banner printing, flag printing, indoor advertising printing, outdoor advertising printing, demonstration printing, etc.

Notes:This printer should be configured with a drying oven.

Product features:
1. SPL-180X-A 512i 13PL Eco-solvent printer adopts Japanese industrial print head KONICA 512i 13PL, which features high speed and strong injection force. Thu, the printed banner has good double vivid effect, and is washable, sun proof and weather proof, meeting the industrial production requirements.

2. This printing machine is configured with an automatic media feeding and collecting system.

3. Positive pressure cleaning is used in the print head cleaning system. The anti-clogging flash function can eliminate blockages and the print head sprays a small amount of ink at regular intervals in order to keep the nozzle wet, wash the blocks away, and ensure a fluid release of ink when printing.

4. Print head heating system is set to prevent ink from breaking down by keeping the temperature stable and keeping the ink in the optimal state in a stable working condition during the printing process.

5. The stable ink supply system and ink box heating system ensure a fluid and continuous release of ink.

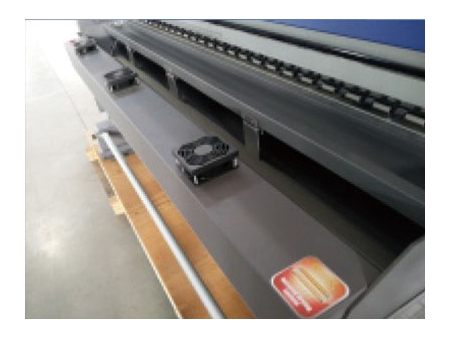

6. A front drying system is equipped.

7. The aluminum alloy guide and AC servo motor ensure the stability and durability of the carriage.

8. Humidity control system is helpful in effectively preventing the print head from getting stuck.

  • Fabric pinch rollers

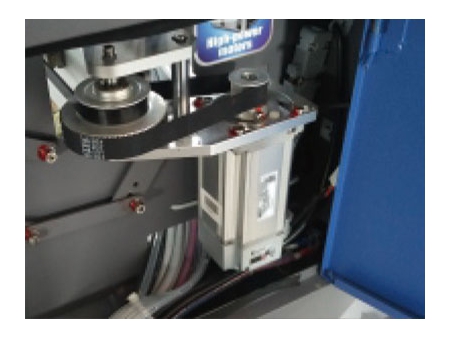

  • AC servo motor
  • Front drying system

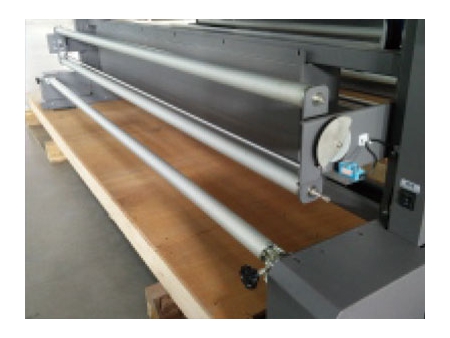

  • Media collecting system
Parameters:
Model SPL-180X -A
Print Head KONICA 512i 13PL
Number of Printhead 4
Maximum Print Width 1.8m (72inch)
Draft Mode 75㎡/hr
Print Speed Standard Mode 56㎡/hr
Ultra Mode 37㎡/hr
Color CMYK
Media Sublimation Fabric
Maximum Print quality 1440dpi
Auto Media System Equipped
Auto Pinthead Cleaning System Positive Pressure Cleaning
Spray in Idel Function
Image Format Bitmap, TIFF, Quark Xpress, JPGEG, AI, EPS, PDF
Color Management Superior ICC Profile
Work Flow RIP and Print at the same time/Print after RIP
Print Interface USB2.0
Ink Type Sublimation Ink
Software Photo Print, Revotech Edition
Power Supply Requirement 220V~( 10%)>15A,50Hz/60Hz

Our company is a leading high resolution eco solvent printer manufacturer and supplier in China, we are offering printing equipment such industrial printers, commercial printers, these printing machines are widely used in poster printing and banner printing, and can print different printing materials like paper, textile, and we have rich experience of manufacturing large format printers, we are confident to offer any client good quality digital printing machines with reasonable price.
