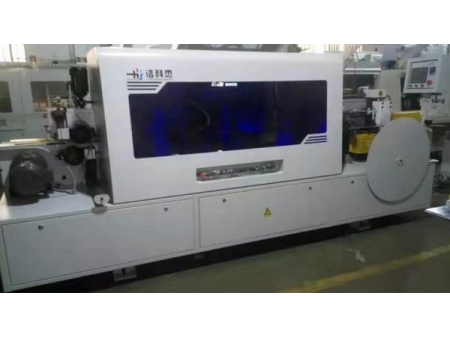

Edge Banding Machine, HKJ-368B
| Total power | 9.3KW |
| Dimension (L*W*H) | 4100*900*1560mm |
| Feed speed | 18-22m/min |
| Edge thickness | 0.4-3mm |
| Panel thickness | 10-60mm |
| Panel length | ≥120mm |
| Panel width | ≥60mm |
| Working pressure | 0.6Mpa |
| Min. panel size (L*W) | 300*60mm |
| Weight | 1500kg |
This series edge banding machine ensures superior finish for a wide range of panel materials including MDF, solid wood board, particleboard, plywood, etc., with feed speed of 18-22m/min. The basic configurations include gluing unit, end cutting unit, fine trimming unit, scraper unit and buffing unit, can solve your specific needs for wood panel edge banding. The edge bander is featured by easy maintenance, stable operation and high durability. The automatic lubrication system provides long service life of machine.
-
-

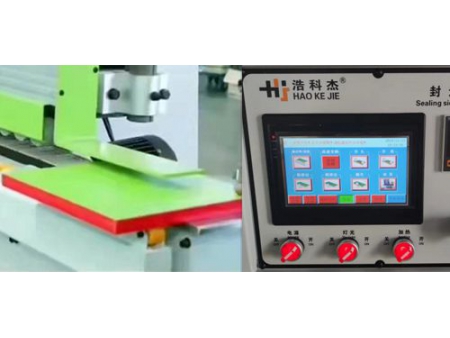

After manually placing the panel on the conveyor belt, this edgebander will automatically complete the entire edge banding process.
-
-

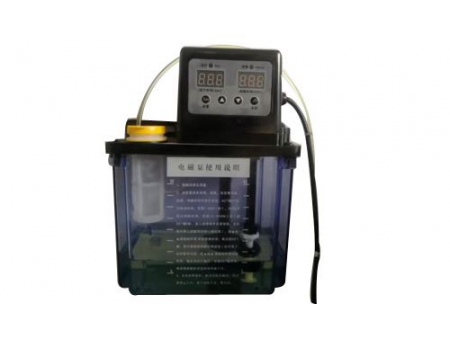

Automatic lubrication system circulates lubrication for smooth operation and prolonged service life of parts.
-
-

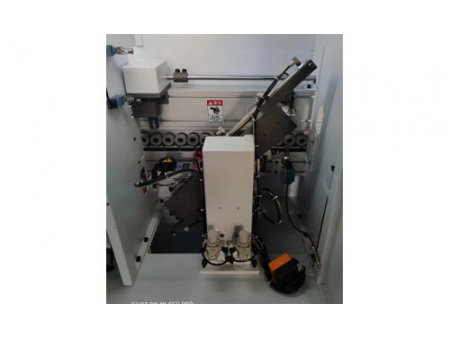

Gluing unit is equipped for evenly applying hot melt glue on workpiece edges, it provides an excellent adhesion.
-
-

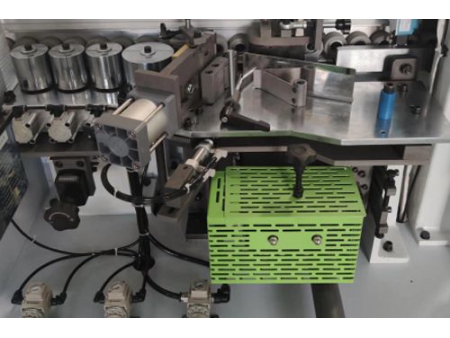

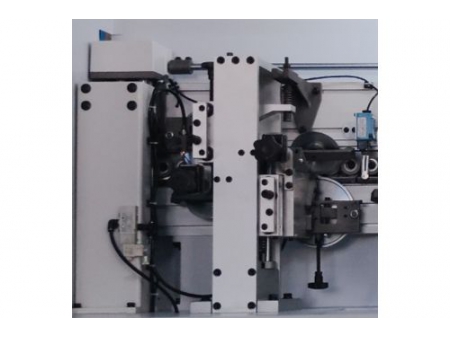

End cutting unit removes exceeding edging tape from the front and rear of the panel.
-
-

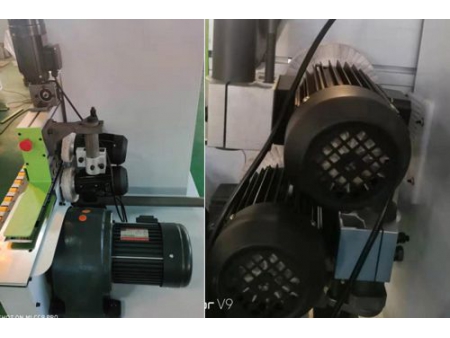

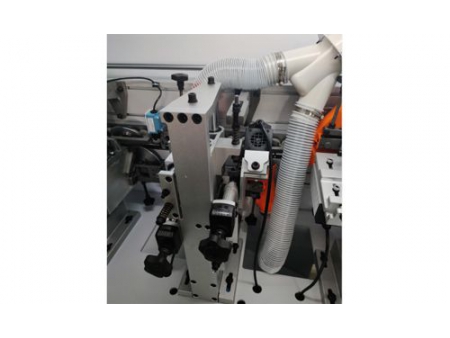

Fine trimming unit perfectly removes upper and lower overhanging edges to give a smooth looking edging.
-
-
Scraper unit gives the smooth finishing result of PVC edges by removal of imperfections resulting from previous milling operations on the top and bottom of the edge.
-
-
Buffing unit improves panel finishing by polishing of the panel edges while eliminating glue residues.
