Model: PFWWS-16Aa/24Aa

Technical Parameters
  • Pipe Diameter Applicable: DN400/DN600
  • Pipe Wall Thickness Applicable: 3-20/3-20/3-20/10-60MM
  • Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
  • Welds Applicable: Various of butt welds for pipe spools such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.
  • Welding Procedure: FCAW/FCAW/FCAW/SAW (Option or as per request)
  • Welding Power: NBC-500/NBC-500/NBC-500/MZ-630 (Option or as per request)

Applications
The automatic piping welding workstation is used for projects with a majority of standard wall thickness pipes and few heavy wall thickness pipes or projects with a majority of heavy wall thickness pipes and few standard wall thickness pipes (PAWWS-24Ad).

Features

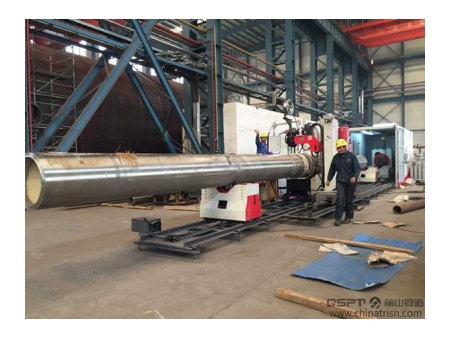

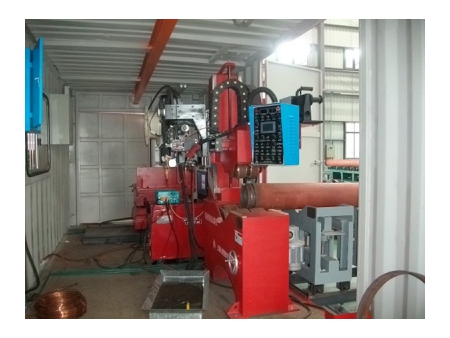

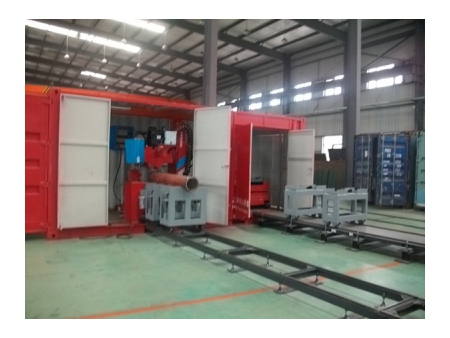

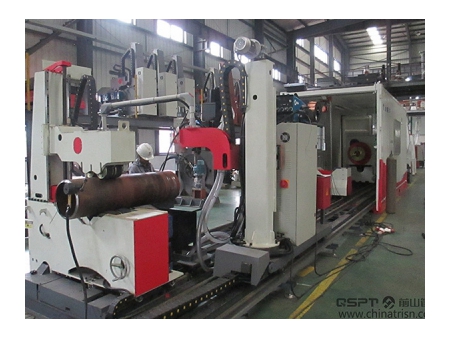

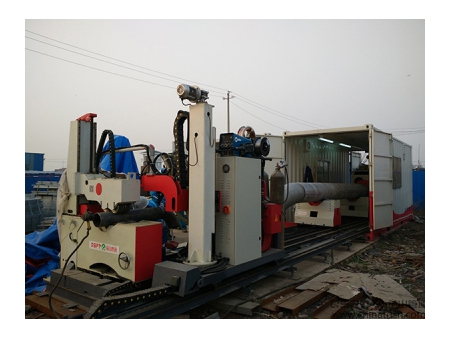

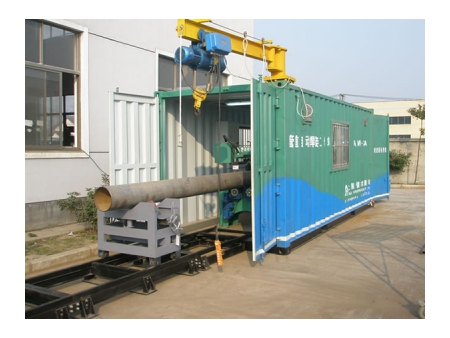

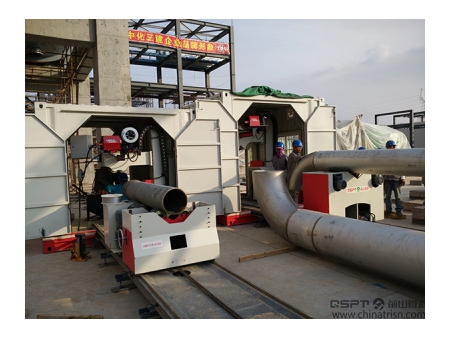

  • The basic configuration of the automatic piping welding workstation consists of the one piece of 6m container made with special retrofit, two sets of piping prefabrication automatic welding machine/piping cantilever automatic welding machine/automatic portable piping welding machine/automatic piping welding machine, two sets rail and trolley conveying system, two sets of piping cantilever cranes (option) and two fcaw welding source/fcaw welding machines/fcaw welding machines/saw welding machines.
  • The production efficiency of the automatic piping welding workstation is 450~650 O.D-Inch per day (DN200 SCH40).
  • It offers excellent equipment mobility (without limitation of radiation radius when using container as carrier).
  • Specialized field workstation; High fitting-up & welding efficiency, good quality; Suitable for fitting–up & auto welding all kinds of spool pieces. Equipped with: one specially retrofitted 6M container one Pipe Fast Fitting-up Machine/Pipe Fabrication Mechanical Fitting-up center one Set of Split Pipe Automatic Welding Machine.
