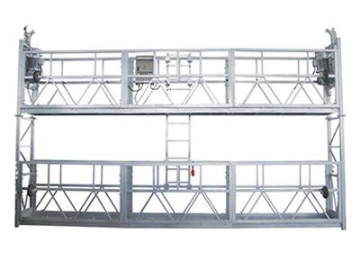

- Double Deck Platform
- L Leg Suspended Platform
- L Leg Single Person Platform

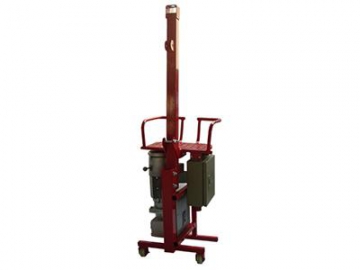

- Single Person Suspended Chair

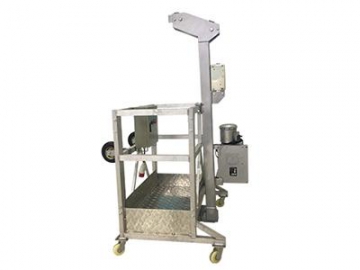

L Leg Single Person Platform Introduction:
L leg single suspended platform has option for 1.2m, 1.5m and 2m platform, with 250kg capacity, it is easy to install and move. Components can be used and replaced with ZLP350 L suspended platform, with a maximum length of 16m for the aluminum reinforcing type platform.
Technical Parameter of ZLP250 Single Person Suspended Platform
| Rated Capacity (kg) | 250 |
| Lifting Speed (m/min) | 9.6 |
| Size of Platform (m) | 1.2*1.2*2.5 |
| Wire Rope Diameter | 8.3mm |
| Working Height | 100m |
| Motor Power (Kw) | 1.5 |
| Voltage | 380/220/415 V |
| Brake Torque (Nm) | 15 |
| Safety Lock Type | LSL30 Centrifugal type |
| Suspended Mechanism Projecting Length (m) | 1.3 〜1.5m |
| Adjustable Height of the Beam | 1.44-2 J 4m |
| Weight of Suspension Mechanism | 150kg |
| Counter Weight | 450kg |
