Perimeter LED Display LED Perimeter Advertising Boards for stadiums and sports fields

Perimeter LED Display          LED Perimeter Advertising Boards for stadiums and sports fields
Perimeter LED Display          LED Perimeter Advertising Boards for stadiums and sports fields
Request a Quote

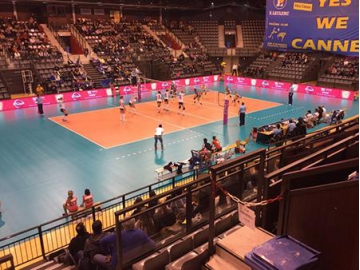

You can earn extra revenue by using perimeter LED display to play sponsors’ ads. The biggest difference between the stadium fence LED display and other LED displays is that there is an adjustable support angle behind each cabinet. The mounting angle can be adjustable at 60°-90°. More viewers can see the information on the perimeter LED display by adjusting the tilt angle of the screen. Considering that the player is fast and the impact is strong, the player and fence screen body must be protected. Therefore, only applying soft mask in the design can we effectively protect the screen body and internal structure. In addition, smoothing is done at the corner to prevent athletes from being injured after crashing into the display.

Features:
  • The installation and disassembly of the cabinet is extremely fast and simple.
  • The brightness is higher than 6000nits, and can be still clearly visible in the sun.
  • High refresh rate, high contrast design, clear and vivid image.
  • Applying efficient optical fiber transmission system, so the LED display can avoid signal delay.
  • To ensure the normal operation, the LED display is equipped with backup power supply and signal. When one of the power supply or signal failure, then another can automatically kicks in.
  • Protection rate up to IP65, so the LED display can withstand any outdoor environments.
  • Using professional connectors, quick installation, safe and reliable.
Parameters:
Model P8 P10 P12 P16
Pixel Pitch 8mm 10mm 12mm 16mm
Pixel Configuration SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B SMD 1R1G1B
LED Type 3535 3535 3535 3535
Pixel Per SQM 15,625 dots 10,000 dots 6,944 dots 3,906 dots
Module Size 256x128mm 320x160mm 192x192mm 256x256mm
Module Resolution 32x16 32x16 16x16 16x16
Brightness ≥6500 cd/m2 ≥7000 cd/m2 ≥6000 cd/m2 ≥6000 cd/m2
Viewing Angle 140 / 140 140 / 140 140 / 140 140 / 140
Driving Method 1/4 1/2 1/2 Static
Gray Scale 65536 65536 65536 65536
Refresh Rate 1920 1920 1920 1920
Input Voltage (AC) 100v - 240v 100v - 240v 100v - 240v 100v - 240v
Frame Frequency 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz
LED Blind Spot Rate 1/10,000 1/10,000 1/10,000 1/10,000
Lifetime 100,000 hours 100,000 hours 100,000 hours 100,000 hours
Operating Temperature -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃ -20 ~ 60 ℃
Operating Humidity 10% ~ 90% 10% ~ 90% 10% ~ 90% 10% ~ 90%
Cabinet Material Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum
Protection Rate IP65 IP65 IP65 IP65
Warranty 3 years 3 years 3 years 3 years
