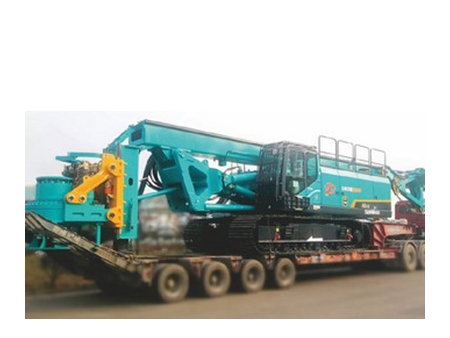

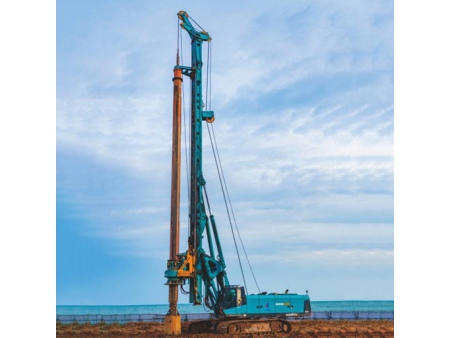

Rotary Drilling Rig SWDM300H
- Overall height: 24.8m
- Max. drilling diameter: 2.5m
- Max. drilling depth: 95m
Rotary Drilling Rig, SWDM300H
Request a Quote
Power head adopts 3 sets of gear reduction motor, delivering high torque, high rotation speed and strong piling capability;

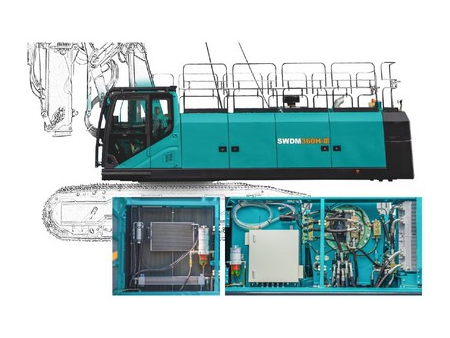

Optimized hydraulic circuit arrangement contributes in reduced pressure loss and expanded space for easy maintenance;
Patented uppercarriage rotation brake technology, high strength mast material, double cylinder luffing mechanism and heavy-duty retractable crawler undercarriage, ensuring high anti-fatigue effect and extended service life;
Single-layer winding of steel rope on a large-diameter drum for minimal rope wear, increasing 50% of rope life;

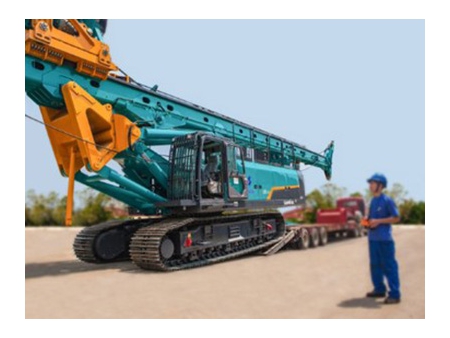

Hidden type outrigger leg is located at bottom part of the mast, not only can enhance the stability during drilling but also facilitate daily maintenance of undercarriage;

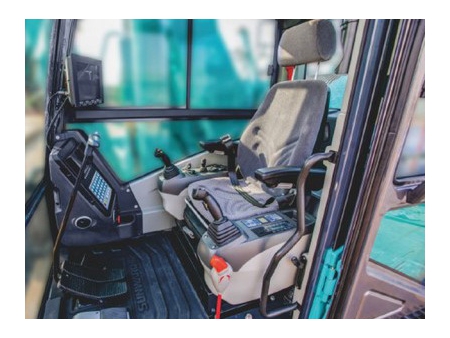

Fault self-diagnosis and alarm, real-time display of drilling parameters, control unit with one-button locking, providing guaranteed operation safety;
Through mobile phone APP (cloud platform), operating data can be synchronously transmitted and the equipment status can be monitored via monitoring camera at any time;
Wireless remote control is optional to achieve remote control of travelling and luffing, keeping operator safe while giving a wider visibility for special working conditions;

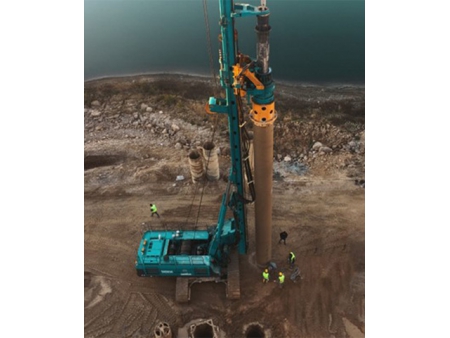

Wide functional expansibility, can achieve multiple functions in one machine, e.g. continuous flight auger (CFA) pile construction, belled pile construction, large-diameter variable-section pile construction; Can be retrofitted to a DTH drilling rig with swivel joint to execute ultra large diameter deep hole reverse circulation drilling;
This model of rotary drilling rig won "Star Product Award" and "Gold Award of Market Performance" of 2020 China's Top 50 Construction Machinery Products;
Technical Specifications
| Drill hole | Max. drilling diameter | mm | 2500 |
| Max. drilling depth | m | 95/62 | |
| Engine | Brand | Cummins | |
| Model | QSM11-C400 | ||
| Power | kW@rpm | 298@2100 | |
| Rotary head | Max. torque | kN.m | 320 |
| Rotation speed | rpm | 6-32 | |
| High-speed removal of drill cuttings (optional) | rpm | / | |
| Crowd system | Max. crowd pressure | kN | 260 |
| Max. crowd pull | kN | 280 | |
| Max. stroke | mm | 6000 | |
| Main winch | Max. line pull | kN | 320 |
| Max. line speed | m/min | 80 | |
| Auxiliary winch | Max. line pull | kN | 110 |
| Max. line speed | m/min | 65 | |
| Mast inclination | Lateral | ° | ±4 |
| Forward/backward | ° | 5 | |
| Undercarriage | Crawler width | mm | 900 |
| Crawler width (extended) | mm | 3000-4500 | |
| Crawler length | mm | 5700 | |
| Complete machine | Working height | mm | 24830 |
| Working weight | t | 105 |
Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
