The computer controlled file folder production line completes PP and PET material integrated processing from sheet material feeding, trimming, folding, welding and cutting in order to turn them into L shaped file folders (also called E310 file folders).

A printing device can also be attached to this equipment, so that customers can print document files according to their needs.

Process display

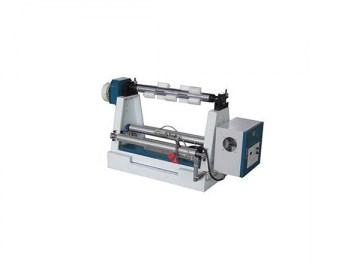

  • Raw materials
  • Pulling

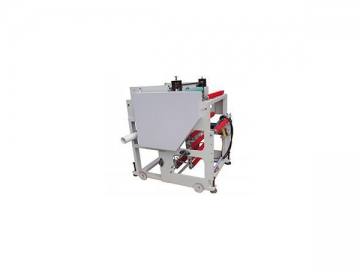

  • Folding

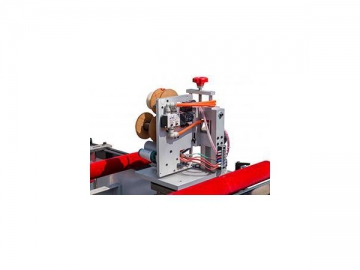

  • Hot stamping
  • Punching
  • Edge sealing
  • Cutting

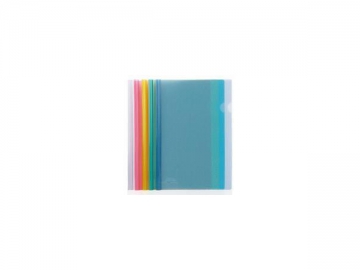

  • Finished products
    • Raw materials
    • Pulling
    • Hot stamping
    • Finished products
    Main advantages
    • The L shaped file folder production machine uses a fully automatic servo motor and computer control, so that the products all have the same specification and the seal is firm and beautiful.
    • The entire production process, including roll materials, automatic edge aligning, trimming, folding, punching, hot stamping, ultrasonic sealing, cutting and final product collection, are all completed in a fully automatic manner with no need for manual assistance. This effectively improves production capacity and saves production costs.
    • This machine carries out various precise and durable punching dies with a low fault rate. It is also equipped with electronic control to ensure the punching position is precise and does not easily deviate.
    Technical parameters
    Model SYS-41A-400
    Max-Cutting Size W×L 2500×500mm
    Film Thickness 0.12m-0.25mm
    Production Per Min (PC) 60-80 pcs/min
    Motor 3HP
    Heater 0.5KW
    Power Required 6.5KW
    Machine Dimension L×W×H 8500×1500×1400mm
    Net Weight 2500KG
    Gross Weight 2800KG
