The KG510/KG510H DTH surface drill rig for open use is one of our new and improved pieces of equipment used for mining exploration on diesel-engine emissions. Equipped with a Yuchai four-cylinder engine (China III), the drill rig meets all relevant national standards for emissions and environmental impact. The folding frame track and four-wheel drive combine with track leveling and a plunger piston walking motor improve the working pressure and climbing capacity of the unit.

The KG510H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters
Drilling diameter: Φ105-152mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3000mm
Supporting power: YC4DK80-T302(58KW/2200r/min)/Yuchai YC4DK80-T302(58KW/2200r/min)

Technical Parameters
Model of drill rig KG510 KG510H
Weight of complete machine 6500KG 7000KG
Outer dimensions 6800×2200×2850mm 6800×2450×2850mm
Drilling Hardness f=6-20
Drilling diameter Φ105-152mm
Depth of economical drilling 25m
Rotary speed 0-100rpm
Rotary torque 3000N·m
Lifting force 40KN
Method of Feed Oil cylinder-leaf chain
Feed strock 3000mm
Travelling speed 0-3.5km/h
Climbing capacity ≤30°
Ground clearance 440mm
Tilt angle of boom Down: 135°, up: 50°, total: 185°
Swing angle of boom Left: 50°, right: 50°, total: 100°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of drill boom Left: 45°, right: 45°, total: 90°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power YC4DK80-T302(58KW/2200r/min)/Yuchai YC4DK80-T302(58KW/2200r/min)
DTH hammer K4
Drilling rod Φ76×3morΦ89×3m/Φ76×3m or Φ89×3m
Air consumption 13-22m³/min
Maximum height of horizontal hole 2850mm
Minimum height of horizontal hole 900mm
Detail features

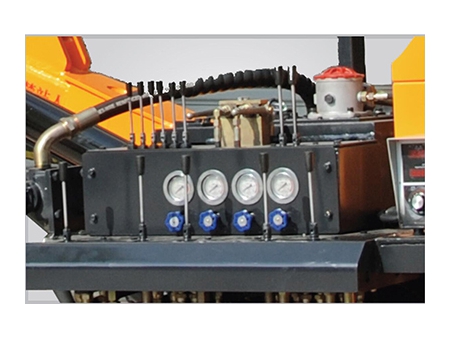

  • Easy Used Control Panel

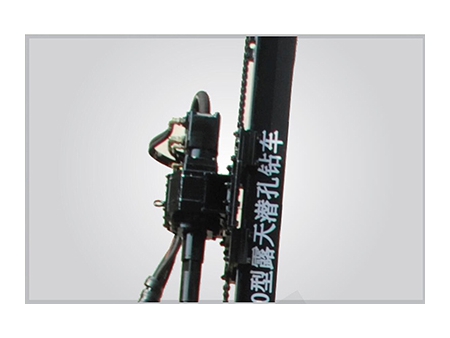

  • High torque gyrator

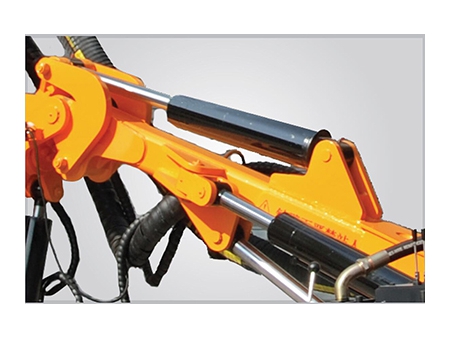

  • Stable hydraulic system
  • Steel track adaptable to all terrains

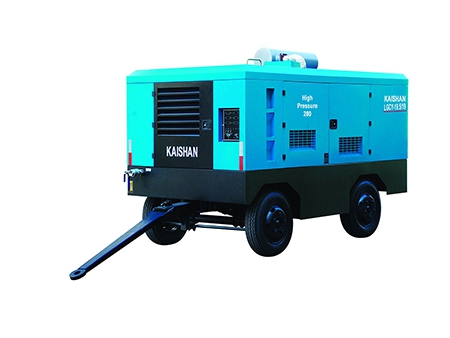

  • Portable Screw Air Compressors
