600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System

600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
600×600mm High Precision Fiber Laser Cutter, PFC0606L-A Laser Cutting System
Request a Quote
Model PFC0606L-A
Laser power (W) ≥100
Working area (mm) 600×600
Overall dimension(mm) 2000×1680×2000
Weight (Kg) 1800
Repeated positioning
accuracy(um)
±4
Cutting thickness(mm) ≤2
Laser wavelength (nm) 1070
Supply voltage Three phase 380V/50Hz/60Hz
Working environment Temp:5~ 40°C, Humidity: 5~85%. No condensate water, no dust or less dust.

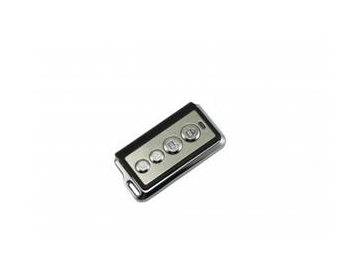

Laser Processing Examples:

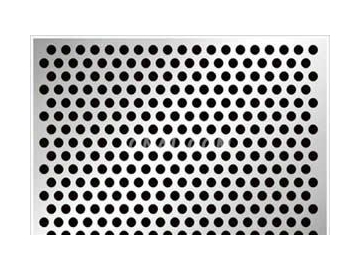

  • Aluminium alloy laser drilling
  • Electrical components inside and outside the laser cutting

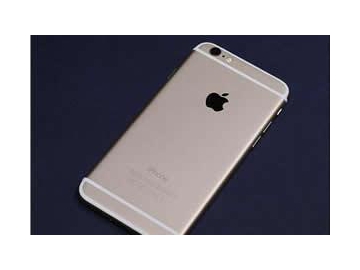

  • Fiber laser cutting metal case

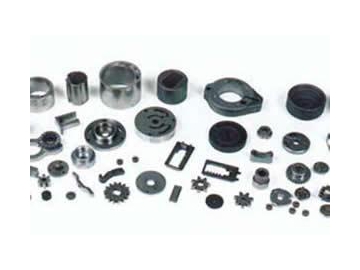

  • Laser cutting of metal chips

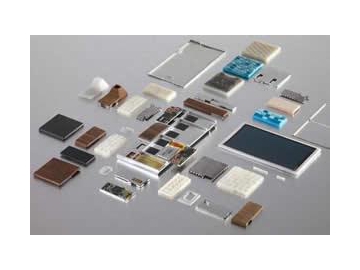

  • Laser cutting precision components inside the phone

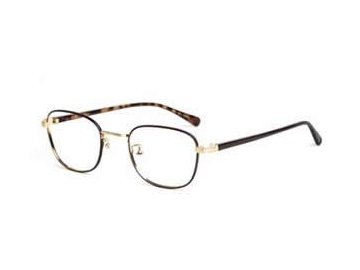

  • Metal frames laser cutting

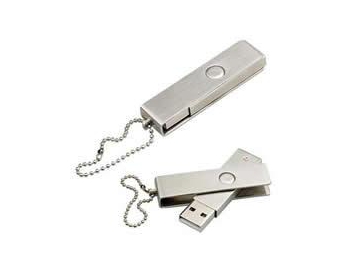

  • U disk laser cutting of metal

Product Feature
1.Adoption of the high-precision marble and heat-treated steel structures ensures the long-term stability of the laser cutter.
2.The drive mechanism adopts the linear motor with fast response and high sensitivity, which can realize the short-stroke high-frequency high-speed movement, delivering excellent dynamic performance.
3.The fiber laser cutting machine features high resolution ratio to achieve higher positioning accuracy.
4.Programmable power, frequency and speed control achieves good cutting quality.
