G80 Clevis Self Locking Hook with Side Trigger

G80 Clevis Self Locking Hook with Side Trigger
G80 Clevis Self Locking Hook with Side Trigger
Request a Quote
Technical Parameters

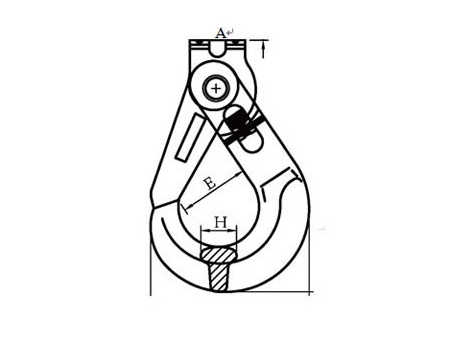

ITEM NO, WEIGHT/kg Working Load Limit (T) Breaking Load (T) A± 2 C±2 D±l H±l φ±1,5 L±3 M±2 N ±l
8-SLR343-6 0.75 1.12 4.48 32,5 24 li 19,5 39 189.5 76 16.4
8-SLR343-7/8 1.02 2 8 36 27.5 12.5 21.5 40 216 83 18
8-SLR343-10 1.75 3.15 12.6 42 34 15 26.5 50 254 101 22.5
8-SLR343-13 2.72 5.3 21.2 50 41 17 30.5 60 300 121 29
8-SLR343-16 5.38 8 32 70 58 21.5 30.5 72 375 140.7 35
