Request a Quote

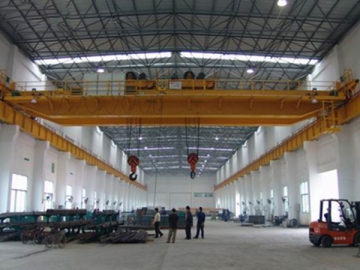

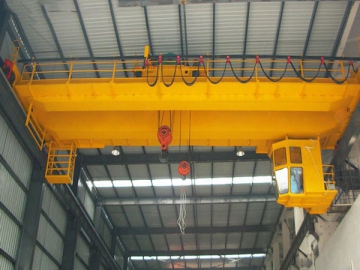

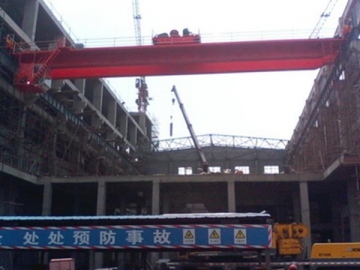

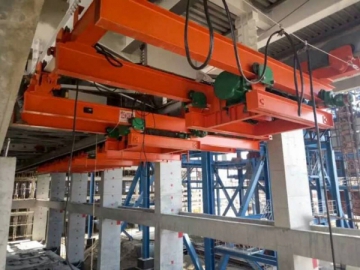

Rail mounted overhead crane is a kind of light crane, which is usually used together with electric hoist. It’s widely applied in steel plants, cement plants, power plants, mining industry, food industry, chemical industry, shipyards, stone yards and warehouses and other places.

Specification
Lifting capacity 5-50t
Span 5-40m
Working temperature -25~40 °C
Working class A3-A5
Power source 380V 3PH 50HZ
Travelling mechanism
Working speed 20-75 m/min
Motor type YZR160M2
Motor power 2*0.8 kw or 2*1.5 kw
Rotational speed 1380 m/min
Lifting mechanism
Lifting speed 8/0.8(7/0.7), 3.5(3.5/0.35), 8(7) (m/min)
Lifting height 6, 9, 12, 18, 24, 30 (m)
Travelling speed 20, 30 m/min
Features
  • Lightweight structure, convenient installation and maintenance
  • Widely used in different places such as factories, warehouses, stockyards, etc.
  • Reasonable structure and high lifting capacity
  • Safe and reliable operation
  • Low maintenance cost and long service life
