Stamping Presses Line

Request a Quote

Website: http://canproductionline.com/2-8-stamping-presses-line.html

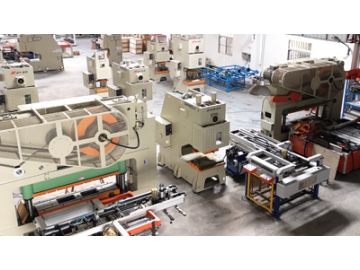

Punch

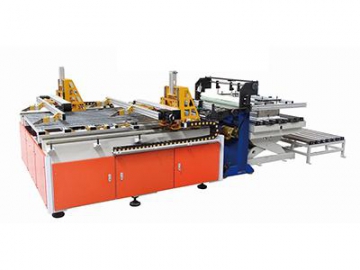

Automatic sheet feeding system

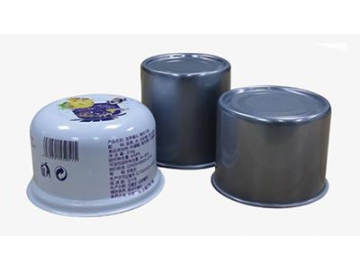

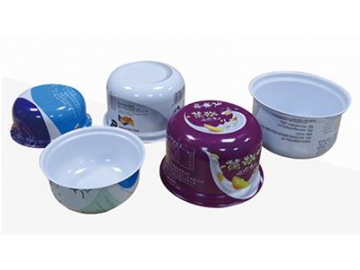

Examples

The stamping presses line is composed of a punch and automatic sheet feeding system. It is designed for manufacturing two-piece cans in a variety of materials, including iron, aluminum, and more. The punch features a high precision and stable operation, ensuring a production output of 200 cans/minute.

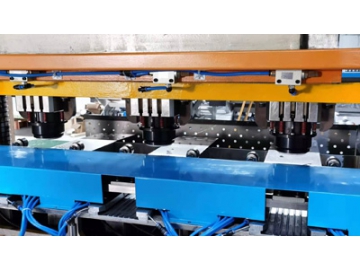

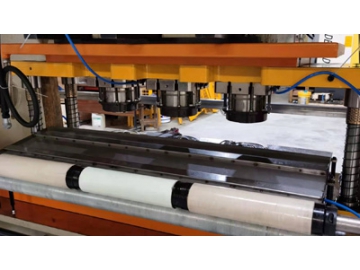

Automatic sheet feeder system, Drawn, Redrawn, Feeding system

Features

The stamping press line is equipped with an OMRON control system and human to machine interface.
No stopping and no empty punching during production maximizes equipment utilization and productivity.
It is equipped with an OMRON servo motor and motion control module.
High quality ball screws and a linear guide rail ensure a stable, reliable operation.
The mold is made of high-quality materials and equipped with 4 highly precise pillar die sets to ensure the mold’s high precision and long service life. The stamping press line features multiple molds, and is highly precise with a highly efficient performance.

Technical Specifications

Main specification	Double clamps	Single clamps
Sheet size	1100*1000 mm	1200*1000
Sheet stacking height	max 350 mm	max 350 mm
Feeding speed	max 1400mm/s	max 1000mm/s
Displacement precision	0.01mm	0.02mm
Feeding time	1-2sheet/s	2~3sheet/s
Available mold quantity	2~10	1~2
Power	12kw	7kw
Weight	5T	4T
