Alloy Steel Sling Hook

Alloy Steel Sling Hook
Alloy Steel Sling Hook
Request a Quote

Ultimate load is 4 times the Working Load Limit.

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

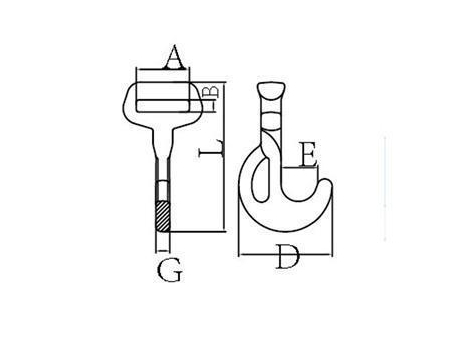

Parameters (Unit: mm)
Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) A±1 B±1 D±2 E±1 G±1 L±2
8-SLR018 1.05 3 12 57 13 100 39 15 160
