Flexo Printing Machine, ZBS-850 Manufacturer

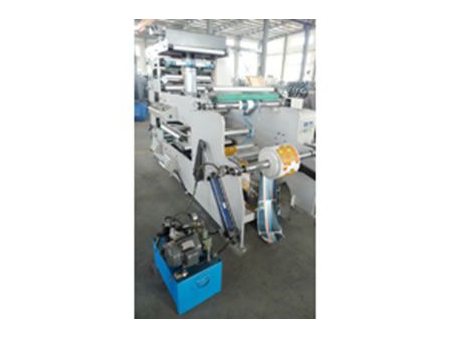

Flexo Printing Machine, ZBS-850

Request a Quote

About Us: http://weigangmachinery.com/2-flexo-printing-machine-5.html

This product has been discontinued and removed from our shelves.

Characteristic

This flexo printing machine adopts the ceramic anilox cylinder to transfer the ink.

Unwinding and rewinding tension are auto-controlled by tension controller.

Each printing unit adopts 3600 plate-adjustment.

IR dryer (hot air type) for each printing unit.

The ink rollers will be separated from the printing roller, and keep running when the machine stopped.

This series of flexo printing machine is mainly used for printing paper cups and packaging labels.

The machine can finish material-feeding, printing, drying and rewinding in a lump.

Main technical specification

Printing speed	50m/min
Printing color	5colours
Max. width of paper	850mm
Max .printing width	820mm
Max. unwinding diameter	600mm
Max. rewinding diameter	600mm
Printing length	Z56-112/Z65-145/Z75-170
Precision of chromatography	±0.15mm
Dimensions	3.45mX1.9m X2.5m (LXWXH)
Machine weight	About 4300kg

Optional auxiliary equipment

There are several options for this flexo printing machine.

Main equipment

The main equipment of our flexo printing machine is listed below.
Printing roller: 3sets, the size is determined by the user.
Anilox cylinders: 1set, the lines can be chosen from 200 to 800 by the user.
Plate mounting machine: 1set
Unwind tension controller: 1piece	Mitsubishi of Japan
Sensor: 2pcs	Mitsubishi of Japan
Rewind tension controller: 1piece	Made in china
Magnetic power brake: 2pcs	Ningxia, China
Electromagnetism valve: SMC 1piece	Japan
Inverter: TECO Brand	Taiwan (stop automatic when paper lack)
Contactor: Schneider	France
Center relay: Schneider	France
Temperature controller	Yuyao in Zhejiang
All switches: Schneider	France
Other low-pressure wiring	Schneider, France/ Yaohua, China
