Window Patching Block Bottom Bag Making Machine Manufacturer

Window Patching Block Bottom Bag Making Machine

Request a Quote

About Us: http://znep-bagmaking.com/2-window-patching-block-bottom-bag-making-machine.html

We specially designed this bag making machine to produce various kinds of paper bags with a clear window mainly for food use. The equipment uses printed or blank roll paper as raw material for the automatic production of paper bags of various sizes.

Parameters

Model	ZDF-KM190	ZDF-KM350
Roll paper width	280-650mm	420-1090mm
Max. diameter of roll paper	1500mm	1500mm
Core diameter of roll paper	76mm	76mm
Paper gram	50-150g	60-150g
Finished bag width	80-190mm	130-350mm
Paper tube length	190-370mm	260-530mm
Bag bottom width	50-110mm	65-180mm
Film gram	0.02g-0.05g	0.02g-0.05g
Window width	20-120mm	20-200mm
Window length	20-160mm	20-200mm
Max. production speed	180/220 pcs/min	150/180 pcs/min
Total power	28kw	28kw
Weight	12000kg	13800kg
Overall dimensions	1260020001800mm	1350033002000mm

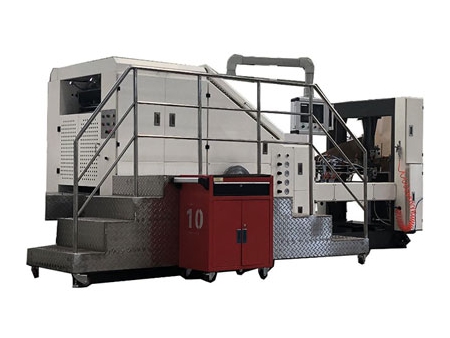

The ZNEP window patching block bottom bag making machine strictly controls each manufacturing process when producing high quality paper bags from plain or pre-printed paper roll. The bag making machine features a Mitsubishi electrical control system and operates under precision servo motor control to ensure high stability and easy operation. It features high production efficiency which is always a perfect choice for reducing labor and manufacturing costs. Compared with sheet fed paper bag making machines, this equipment is eco-friendlier and more economical as it can produce high quality bags from thin paper.

2. FEEDING UNIT

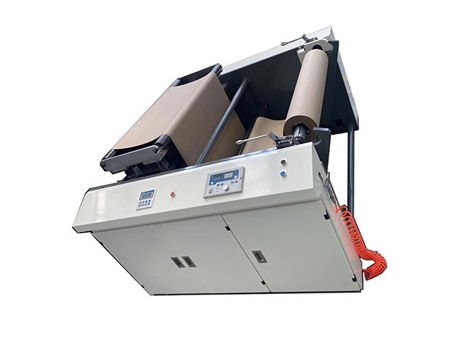

  The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.
2. DIE CUTTING UNIT

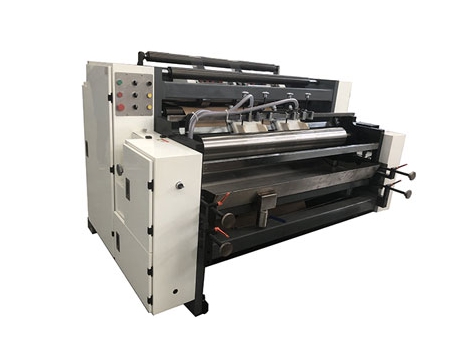

  The upper roller is designed with blade magnetic sucking device to make it easy to change blade and save cost. The lower roller made using hard alloy ensures the edge of die-cut part is smooth and clean. The rollers work together to achieve desired die cut result.
2. PATCHING UNIT

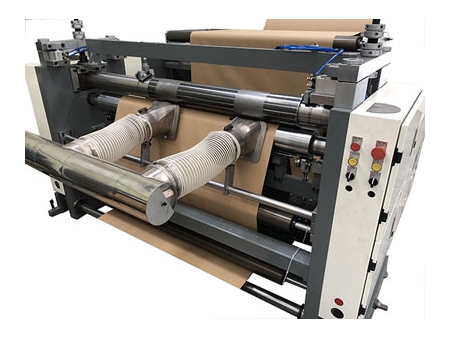

  This unit adopts an abreast double-knife to ensure the synchronization of the film patch or paper patch. Gluing, traction and cutting of the patch rolls are all controlled by servo motors. After putting the glue on desired locations and folding by a pneumatic roller, the system realizes the automatic functions of paper feeding, conveying, window gluing, film slitting and patching to produce the ready paper bags through a second roller mechanism.
2. SIDE GLUING UNIT
  A glue level sensor is used to detect the amount of glue left in the machine. The glue dispenser is used to apply adhesive to the desired locations of the paper.
2. BAG FORMING UNIT
  The product is initially formed using the paper, and patches and side glue are attached to the tube. Afterwards, the resulting textile is cut into separate pieces based on the settings. Lastly, these separate tubes would be sent to the drum. The four corners would be opened, then the bottom is glued, sealed, and formed into a square shape.
2. BAG COLLECTING UNIT

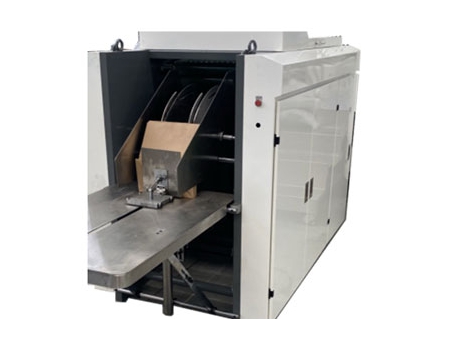

  Compress the bags and outlet the bags. The number of paper bags can be processed and presented by the automatic collection and counting system.
