Baggage Loading And Unloading Vehicle, Baggage Conveyor, Mobile Baggage Loader

The HD-CB801 series belt loader is mainly used in airports for loading and unloading baggage, parcels, mail and other types of cargo. It is applicable to B737, B747, B757, B767, B777, A320 series, A300, A330, A340 and other series of aircraft models.

This belt loader is mainly made up of a conveyor belt, holder, front and rear lifting mechanism, chassis frame, operator cabin, hydraulic system, engine assembly, service braking system, electrical system, front and rear axle, etc.

Features
  • HD-CB801 belt loader has a loading capacity of up to 1200kgs.

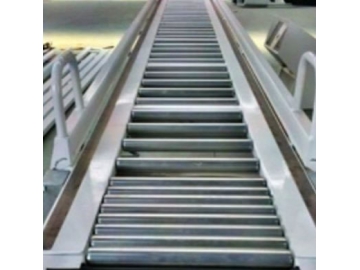

  • The conveyor belt frame consists of rollers, being sturdy, durable and free of regular maintenance.
  • This loader adopts a belt with high tensile strength and good wear resistance. The conveyor belt has a large friction coefficient, keeping the baggage from slipping freely on the belt.
  • The conveying device equips hydraulic balancing equipment to convey the heavy luggage of 400kgs. The conveying speed is adjustable to ensure safe and reliable conveying.

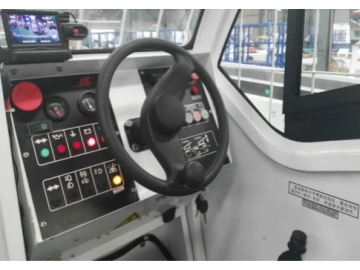

  • The operator cabin has a beautiful and elegant design, of convenient and comfortable operation. The cabin console is equipped with various types of function instruments, console switches, indicators, etc. This allows easy and convenient operation.
  • The hydraulic system parts and electric parts are all from internationally universal and reliable products, ensuring equipment quality.
  • This belt loader adopts vacuum assisted dual circuit hydraulic braking system. Just by lightly stepping on the pedal, you can brake the loader. This makes the braking safer.
  • The hydraulic system in lifting mechanism and outrigger structure is set with hydraulic inter-locking device. The hydraulic oil cylinder has hydraulic lock. And the electric is controlled by integrated circuit board.
  • The rotating switch of the conveyor belt adopts internationally universal and quality-reliable switch. So it has stable performance, long service life and convenient replacement. Besides, all the exposed control devices have functions of rain proof and moisture proof.
  • Paint used in the rack board, the outer shell of the operator cabin, the loader frame and other parts adopt three-layer painting process. This is beautiful, eco-friendly and anti-corrosion.
Parameters
Product model HD-CB801 HD-CB801A HD-CB801B
Aircraft side (front) height range 1200~4300mm 1200~4300 mm 1200~4300 mm
Trolley's side (rear) height range 540~1300mm 540~1300mm 440~1250mm
Loader length 8000mm 8000mm 8070 mm
Loader width 2120mm 2020mm 2190 mm
Loader height (without covering/ with covering) 1510/1930 mm 1510/1930 mm 1510/1930 mm
Ground clearance 130 mm 130 mm 140 mm
Min. Turning radius 6500 mm 6500 mm 6500 mm
Wheelbase 1868 mm 1868 mm 1868 mm
Tread (front/rear) 1750/1745 1750/1745 1750/1745
Approach angle 14° 14° 14°
Departure angle 25° 25° 25°
Conveyor belt width 800kg 800kg 700kg
Conveying speed 0.3-0.5 m/s 0.3-0.5 m/s 0.3-0.5 m/s
Conveyor belt inclination 30° 30° 30°
Max.speed 30km/h 30km/h 35km/h
Curb weight 3350kg 3350kg 3420kg
Engine model/brand JX493G3/Jiangling JX493G3/Jiangling AK-C240PKJ-31/Isuzu
Power 57KW 57KW 35.5KW
Rational speed 3600rpm 3600rpm 2500rpm
Torsion 174Nm 174Nm 174Nm
Diesel oil consumption 218g/Kw.h 250g/Kw.h 250g/Kw.h
Gearbox model/brand CAS5-20Y15 (FAW) YYX25A(Zhong chuan) YT48320D (undefinedOkamura)
Parts display

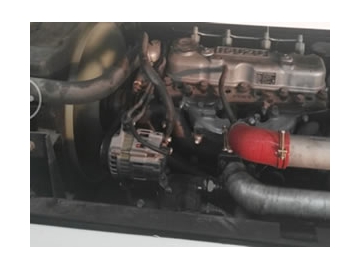

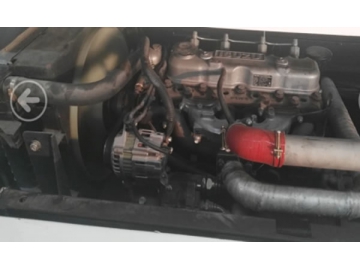

  • This loader is equipped with Isuzu C240 engine and Okamura first gear gearbox

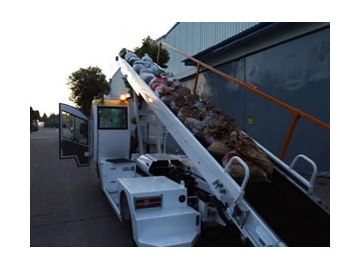

  • This loader is carrying out the loading experiment
