0.6/1 kV NAYY Cable(AL/PVC/PVC) Manufacturer

0.6/1 kV NAYY Cable(AL/PVC/PVC)

Request a Quote

About Us: http://tongdacables.com/3-1-3-1-kv-nayy-cable.html

NAYY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Specifications
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

Construction

Click below for specific parameters

1 Core
2 Core
3 Core
4 Core
5 Core
3+1 Core
4+1 Core
3+2 Core

VV/VLV-0.6/1-kV-single-core	VV/VLV-0.6/1-kV-multi core

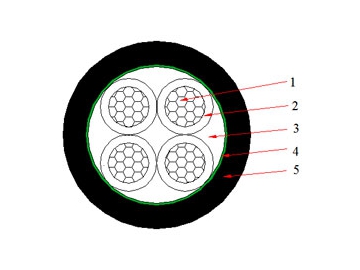

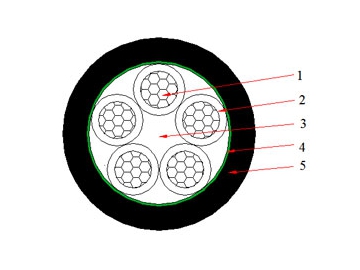

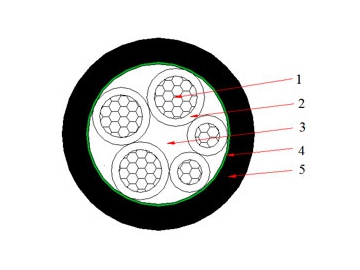

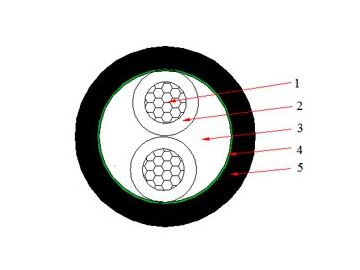

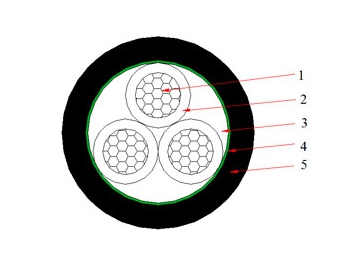

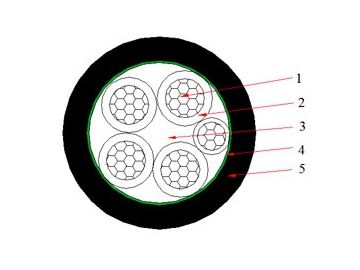

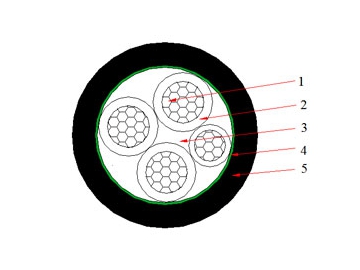

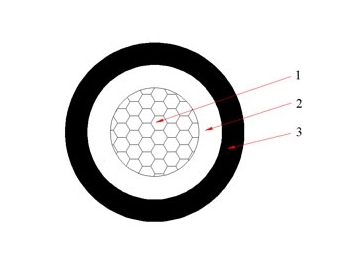

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2. Insulation: Polyvinyl chloride PVC 3. Outer sheath: Polyvinyl chloride PVC	1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2. Insulation: Polyvinyl chloride PVC 3. Filler: Non-hygroscopic material 4. Binder tape: Non-hygroscopic material 5. Outer sheath: Polyvinyl chloride PVC
