100W CO2 Laser Marking Machine, MC100-E-A Laser Marker Equipment
Applicable Materials
This laser marker equipment can mark on non-metallic materials such as wooden products, plastics, paper and others.
Cutting System
| Model | Laser power (W) | Working area (mm) | Minimum line width (mm) | Minimum character (mm) | Speed (m/min) | Overall dimension (mm) | Weight (Kg) | Supply voltage | Working environment | Gross power (kW) |
| MC100-E-A | 100 | 300×300 | 0.1 | 1.5 | 0~5000 Imported galvanometer 0~7000 | 2100 × 1800 × 1400 | 170 | 220~240V, 50/60Hz | Temp: 5~40°C, Humidity: 5~80%. No condensate water, no dust or less dust. | 5.9 |

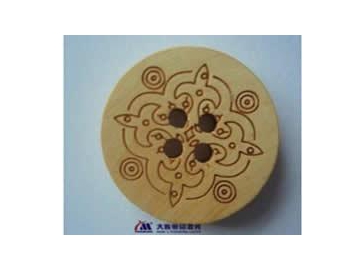

Laser Processing Examples:
Product Feature
1. The imported RF CO2 laser generator features a high-quality laser spot, stable and uniform laser power density and laser output. The high-speed scanning galvanometer is fast and stable.
2. The control system can carry out optimization processing for different kinds of data according to different techniques. It supports different language switching and up to 256 types of color layer management, easily satisfying most current market technique requirements.
3. The split-type rack and independent working platform with impact structure design ensures a flexible placement, effectively saving space.
4. The light path system uses a double-sealed structure to prevent dust from entering the optical cavity, which improves the serve life and working efficiency.
5. Numerical high-speed scanning galvanometer features fast speed and excellent stability.
