Aluminum Shell Wire Wound Resistor

Aluminum Shell Wire Wound Resistor
Request a Quote

Aluminum shell wire wound resistor can be adopted for high voltage applications with high pulse load, as a dump resistor and crowbar resistor. Its nominal power is 60w-100w and its maximum operating voltage is 2000V.

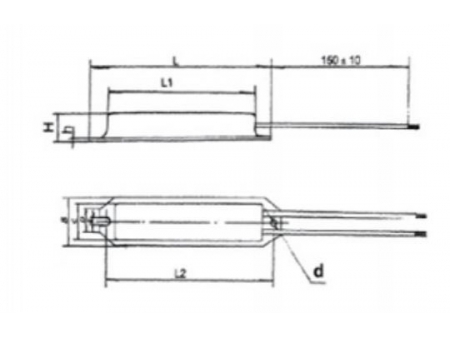

Dimensions
    Parameters
    Rated Power (W) Dimensions (mm)
    L L1 L2 B C D E H h d
    60 100±2 75 ±2 90 ±2 30±1 26±1 17 ±1 4.5 13±1 1 4.5
    80 130±2 104 ±2 118±2 42±1 38±1 22±1 6 21 ±1 1 6
    120 182±2 150±2 172 ±2 42±1 38±1 22±1 6 21 ±1 1 6
    100 15012 125±2 140±2 34±1 31 ±1 18±1 4.5 21 ±1 1 4.5

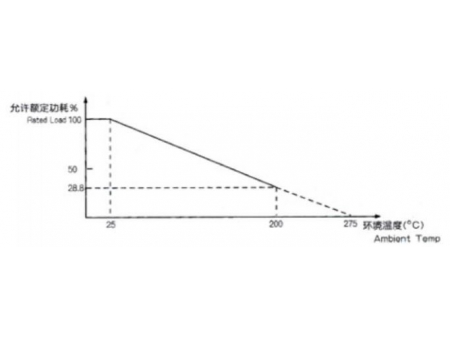

    Derating Curve

      Nominal resistance allowable tolerance: ±5%±10%
      Voltage resistance: 2000VDC or AC virtual value
      Insulation resistance≥100MΩ
