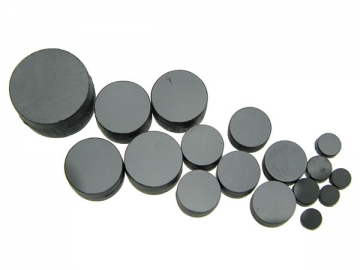

Self-Supported Diamond Die Blanks
Description
The Self-Supported diamond die blanks uses our own patent technology to conduct one side polishing. We also use unique checkout equipment to test the PCD material. We can guarantee the quality of the PCD material used to manufacture the die blank.
Features of Self-Supported Diamond Die Blanks
1. The Self-Supported diamond die blanks has a regular and compact microstructure and a long service life.
2. It is easy grinding, easy polishing and high smooth finish.
3. Our Self-Supported diamond die blanks is particularly suitable for high speed wire drawing.
Application

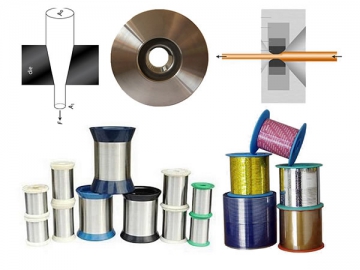

The Self-Supported diamond die blanks is used to draw copper wire, aluminum wire, tungsten wire, molybdenum wire, stainless wire and coated steel wire.
| Specification of Self- supporting Diamond Die Blanks | ||||||||||
| ADDMA No. | Product No. | Dimensions (mm) | Available Grain Size (μm) | Concentricity (mm) | ||||||
| φd | φD | t | 5 | 10 | 20 | 30 | 40 | |||
| D6 | CXD--R2510 | 2.5 | -- | 1.0 | √ | √ | √ | √ | √ | -- |
| D12 | CXD--R3215 | 3.2 | -- | 1.5 | √ | √ | √ | √ | √ | -- |
| D15 | CXD--R5225 | 5.2 | -- | 2.5 | √ | √ | √ | √ | √ | -- |
| D18 | CXD--R5235 | 5.2 | -- | 3.5 | √ | √ | √ | √ | √ | -- |
| D21 | CXD--R8040 | 8.0 | -- | 4.0 | × | √ | √ | √ | √ | -- |
| D24 | CXD--R9853 | 9.8 | -- | 5.3 | × | √ | √ | √ | √ | -- |
Material
The Self-Supported diamond die blanks uses high quality PCD material.
Packaging
The Self-Supported diamond die blanks is packaged in a plastic case/carton.
As a Self-Supported diamond die blanks manufacturer and supplier based in China, our company also offers tungsten carbide supported diamond die blanks, PCD diamond scribing wheel, PCBN inserts, CVD diamond tool, and more.
