QBC15 Electric Pallet Jack
Request a Quote
Operated by a high performance battery powered AC drive system, the QBC15 electric pallet jack carries out material handling jobs with outstanding efficiency, safety, and smoothness. The pallet jack is extremely easy to maneuver and offers incredible labor saving power.
Features
- Convenient disassembly for easy maintenance.
- The pallet fork is formed integrally offering high strength.
- High capacity sealed battery can be used for long time without any maintenance and it does not require the addition of distilled water or other liquids throughout its service life.

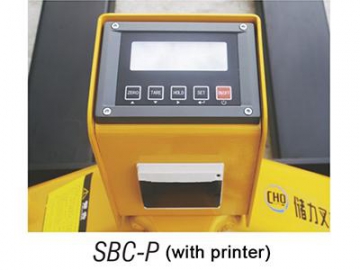

- Optional matching weighing or printing function to meet the needs of different customers.
Technical parameters
| Model | QBC15 | ||||
| Features | Rated capacity | Q(kg) | 1500 | ||
| Load centre distance | c | 500 | |||
| Weight | Service weight including battery | kg | 210 | ||
| Wheel chassis | Wheel size | Steer wheel | mm | Φ210×70 | |
| Load wheel | mm | Φ80×93/70 | Φ74×93/70 | ||
| Wheel layout | Three-point support | ||||
| Tread, rear | b11（mm） | 518 | |||
| Dimension | Max. lift height | h3（mm） | 195 | ||
| Height, fork lowered | h13（mm） | 85/75 | |||
| Overall length | l1（mm） | 1670 | |||
| Overall width | b1（mm） | 680 | |||
| Fork dimension | s/e/l（mm） | 53/160/1150 | |||
| Fork width | b5（mm） | 550/685 | |||
| Turning radius | Wa（mm） | 1470 | |||
| Height drawbar in driving position max./min. | h14（mm） | 1220/680 | |||
| Capability | Traveling speed, laden/unladen | Km/h | 3.5/4 | ||
| Max. gradeability, laden/unladen | % | 3/10 | |||
| Motor | Drive motor power | kw | 0.75 | ||
| Lift motor power | kw | 0.8 | |||
| Battery voltage/rated capacity | V/Ah | 24/75 | |||
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
