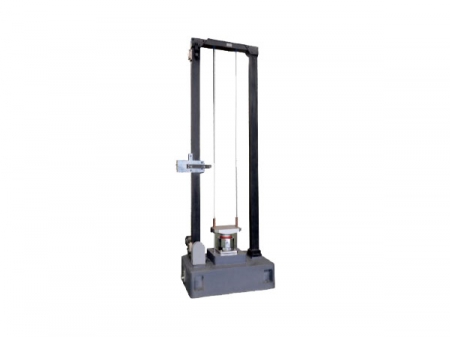

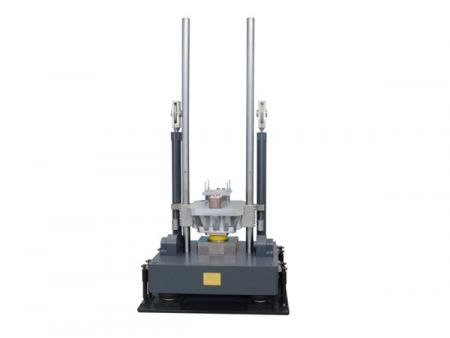

SY-10 Hydraulic Free Fall Shock Machine

SY-10 Hydraulic Free Fall Shock Machine
SY-10 Hydraulic Free Fall Shock Machine
SY-10 Hydraulic Free Fall Shock Machine
SY-10 Hydraulic Free Fall Shock Machine
Request a Quote

The SY-10 hydraulic free fall shock machine is ideal for simulating the shock suffered by different goods in a practical environment. It checks whether these goods have reliable functions and complete structures under shock.

As a shock tester, the hydraulic free fall shock machine can carry out a variety of impact tests such as the conventional half-sine wave, post-peak sawtooth wave, and the square wave, etc.

Functions and Characteristics
  • A combination of hydraulic balance lifting system and multi-rack guide column with large strength margin ensures stable lifting action and no noise.
  • The cast aluminum-magnesium alloy table is optimally designed, featuring high stiffness and small high-frequency clutter.
  • With large braking force, the built-in hydraulic braking mechanism can effectively avoid the secondary rebound.
  • The digital lifting height feedback control system guarantees the repeatability of the shock.
  • The hydraulic free fall shock machine is designed with a self-buffer base for greatly reducing the shock to the ground. Without a dedicated base, it is extremely convenient to be installed.
Main Specifications
Model SY10-2
Mechanical
SY10-5 SY10-25 SY10-50 * SY10-100 * SY10-200 ** SY10-400 ** SY10-600 ** SY10-1000 ** SY10-1500
Related Load (kg) 2 5 25 50 100 200 400 600 1000 1500
Table Size (mm) 200x200 200x200 300x350 480x500 650x800 800x960 1000 X1000 1200 X1200 1000 X1000
1200 X1200
1000x1200
1200x1200
Shock Waveform Half-sine Half-sine Post-peak sawtooth Half-sine Post-peak sawtooth Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid
Shock Acceleration (m/s2) 200-15000 200-15000 150-1000 150-15000 150-1000 150-6000 150-1000 300-1000 150-6000 150-1000 300-1000 150-3500 150-1000 300-1000 150-1500 150-500 300-500 150-1500 150-500 300-500 150-1500 150-500 300-500 150-1500 150-500 300-500
Pulse Duration (ms) 11-0.8 18-0.5 18-6 30-0.8 18-6 30-1.5 18-6 12-6 30-1.5 18-6 12-6 30-2 18-6 12-6 30-6 18-6 12-6 30-6 18-6 12-6 30-6 18-6 12-6 30-6 18-6 12-6
Dimension (L×W×H: mm) 900 x 510 x 2100 900x725x 2200 900x725x 2200 1260 x 960x 2600 1370 x 1000 x 2600 1560 x 1210 x 2600 1600 x 1210 x 2600 1620 x 1350 x 2600 1750x1500 x 2800 1950x1750x 2800
Weight (kg) 500 550 850 2500 3100 3800 4200 5100 6000 7000
Size of Oil Source (mm)   350×300×690 630×450×710 700X530X780
Volume of Oil Source   60L 60L 45kg/100L
Power Supply 0.3kW 380V 5060Hz 1.5kW 380V 50/60Hz 1.5kW 380V 50/60Hz 2.2kW
Standard GJB150 GJB360 GJB548 GB/T2423 JJG541 IEC60068-2-27
*Minimum Pulse Width 0.8ms
**Minimum Pulse Width 2ms
