Introduction
The case filling machine automatically make products in the required order, place them into the open carton, then glue the carton shut.

The case filling machine is used to package bottles, boxes, bags, buckets and other materials inside a box. This equipment can be added to existing packaging lines, and features a simply, steady, computer controlled performance.

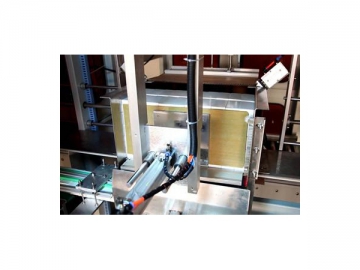

Make products in order

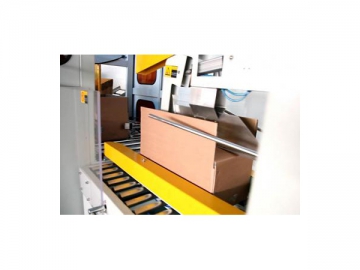

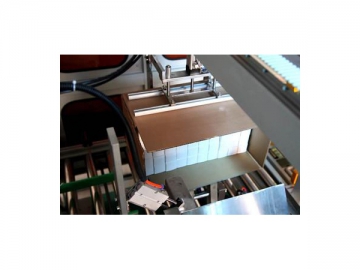

Insert products into cartons
Insert products into cartons

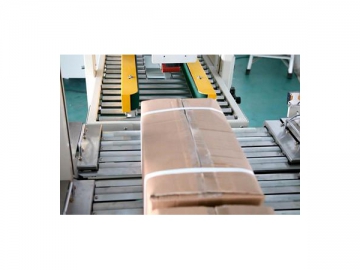

Seal with glue
Seal with glue

Parameters

Case width	150-400mm
Case height	100-350mm
Case length	200-450mm
Size	L2000×W1900×H1450mm
Speed	20m/min
Power supply	220V/380V 56/60HZ
Machine weight	400Kg

Features

The KX-450 case filling machine features a simple operation with PLC control and a touch screen.
The case filling machine will come to an automatic stop when there are no boxes to fill, and will not start when there are no boxes to fill. This reduces the number of operators needed, reduces labor intensity, and makes operation and management easy.
