KCSGFE High Pressure Fused Sight Glass, 90° Elbow

KCSGFE High Pressure Fused Sight Glass, 90° Elbow
KCSGFE High Pressure Fused Sight Glass, 90° Elbow
Request a Quote
  • Meets SAE specifications and standards
  • Steel construction with Nickel plated surface
  • Fuses a glass lens inside of a metal housing
  • Max. operating temperatures up to 500 °F (260 °C)
  • With BullsEye sight glass

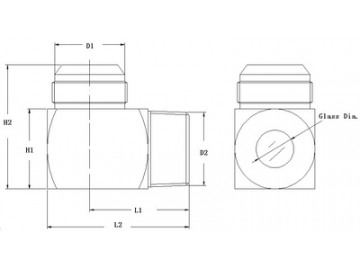

Inch/Metric (mm)
Item # D1 D2 Glass Dia. L2 L1 H2 H1
KCSGFE-100 1 5/16-12UN, 37 Degree flared 1" Male 0.90"(22.86) 2.66"(67.56) 1.71"(43.43) 2.54"(64.52) 1.37"(34.80)
KCSGFE-150 1-1/2" Male
