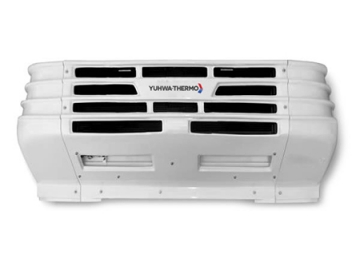

RM3000 Monoblock Type Truck Refrigeration Unit

RM3000 Monoblock Type Truck Refrigeration Unit
Request a Quote
Application
For Frozen 4.5㎥ ~ Fresh 8㎥ Truck
Container Size Frozen -25 ℃ 10.5 ㎥
-20 ℃ 12.5 ㎥
-15 ℃ 14.0 ㎥
-10 ℃ 14.5 ㎥
Fresh/chilled -5 ℃ ~ 15 ℃ up to 17 ㎥
Truck Size 2-3 tons
Cooling capacity
Temperature W Kcal/h Btu/h
Cooling Capacity 0 ℃ 4.21 3620 14480
-18 ℃ 2.37 2038 8152

ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm

Other Specification
Dimensions (L x W x H, mm) 1632 x 706 x 535
Evaporator Air Flow (m3/h) 1500
Weight (kgs) 106
Installation Hole Size (mm) 1250 x 482
Comp. Model TM16
Displacement 163cc
R404a (kgs) 1.7

Note:
The above refrigerating capacity is tested @ISO standard of ambient temp.: 37.8℃, compressor speed: 2400rpm.
* The above applicable volume is only for reference, which is based on thermal conductivity of the insulation boxes of no higher than 0.39W/m2.K, the actual applicable volume is related to factors such as insulation panel thickness & its heat preservation performance, ambient temperature, and cargo itself.
* The above data shall be subject to changes without any prior notice.

System components:
Condenser unit
Super slim evaporator unit
Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)
Refrigerant:
HFC R404a chlorine zero
Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting
Voltage:
DC12V / DC24V
