Diamond Grinding Segments, Grinding Head
Request a Quote
Diamond grinding strips and grinding heads (also known as grinder bits) are primarily used for wet and dry grinding of refractory material. We offer a variety of sintered grinding strips and electroformed grinding heads according to specific customer requirements.

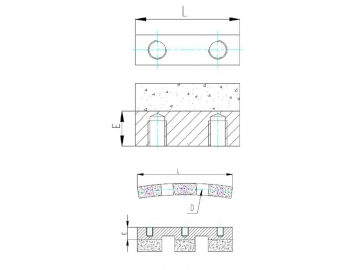

Technical Parameters:Sintered Grinding Strip
| LENGTH mm | WIDTH mm | HEIGHT mm | NOTE |
| 25 | 14 | 21 | M8 |
| 25 | 16 | 19.8 | M8 |
| 32.5 | 15 | 16 | M8 |
| 41 | 16 | 25 | M8 |
| 45 | 13 | 27 | M8 |
| 45 | 14.5 | 27 | M8 |
| 49 | 12 | 11.5 | M8 |
| 50 | 12 | 25 | M8 |
| 141.6 | 17 | 36 | R450 |
| 152.4 | 19 | 36 | R556 |

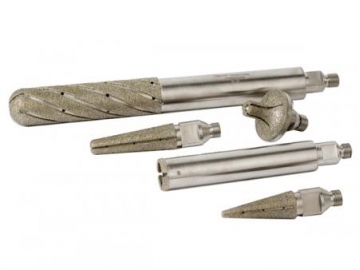

| NAME | SPECIFICATION | SINK | WORKING THICKNESS |
| Flat grinder bit | Φ 90x211 | Uniform distribution | 2mm |
| Bore grinder bit | Φ 80x100 | Uniform distribution | 2mm |
| Grinder core bit | Φ 100x130 | Uniform distribution | 2mm |
| Grinder profiling bit | Φ 20x88 | Internal water injection | 2mm |
| Spherical grinder bit | Φ 147x77 | Internal water injection | 2mm |
| Straight rod grinder bit | Φ 20x110 | Internal water injection | 2mm |
Remark: Other specs are available upon request.
