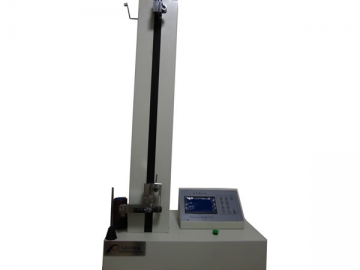

Single Column Tensile Test Machine
Application

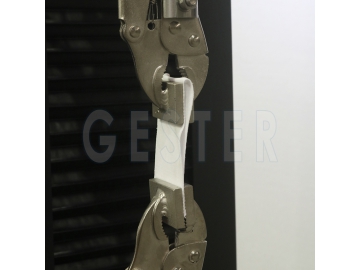

The single column test machine was developed to measure the mechanical and physical characteristics of materials in various states, including stretching, compression, cutting, tearing, striping, etc. It is suitable for use with various materials and product types, including rubber, plastic, waterproof materials, protective materials, yarn, fiber, wire, cable, tape, and much more.
Specification
| Model | |
| Capacity | 50N, 100N, 200N, 500N, 1KN, 2KN, 2.5KN, 5KN |
| Display | Computer display |
| Force Resolution | 1/100,000 |
| Force Accuracy | ≤+/-0.5% |
| Stroke Range | 1000mm |
| Stroke Resolution | 0.001 mm |
| Test Speed | 0.001-1000mm/min can set on display, with up & down fast adjustment button of grips |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode | Overload stop, emergency stop button. specimen damage automatic stop |
| Machine Drive | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power | 120W |
| Power Supply | AC 220V 50-60HZ 10A |
| Dimensions | Approx 50x40x145 cm |
| Weight | 60kg |
Standards
EN ISO 20344 section 7.2 GB/T20991 section 7.2
EN ISO20347 section 5.7.3 AS/NZS 2210.2 section 7.2
SATRA TM5, TM53, TM52, TM51, TM108, TM113, TM117, TM118, TM120, TM123, TM149, TM162, TM401, TM 411,TM 410,
ASTM D751/ 2209 / 412 / 624 / D 882 / 5748, FIA 1206,
BS5131- 3.7, 5.11, 5.13 , BS 5131-2.6
ISO22650, ISO 19958, ISO 3377-1, ISO 3377-2, ISO 11644, ISO 20866, ISO20867, ISO19957, ISO20874, ISO20344-5.2.4, ISO 20345-5.3.1.2, ISO17698, ISO20875, ISO22777, ISO22776, ISO22654, ISO20863, ISO20876, ISO17695, ISO17697, ISO34-1 ,ISO36, ISO37, ISO 17708,
ISO 17696, ISO17706
AS/NZS 2210.2-5.2.4
DIN 53331,
GB/T3903.8, GB/T3903.9, GB/T3903.14, GB/T3903.20, GB/T3903.21, GB/T3903.22,
GB/T 3903.23, GB/T 3903.24, GB/T 3903.25, GB/T 3903.26, GB/T 3903.29, GB/T3903.32,
GB/T 3903.39, GB/T 3903.40, GB/T 3903.43, GB/T 4689.20, GB/T20991-5.2.4,
GB 21148-5.3.1.2, GB/T 17928, GB/T529, GB/T528, GB/T532, GB/T21396
QB/T11413 ,QB/T 2711 ,QB/T2675, QB/T2883, QB/T4118,QB/T4198
HG/T 2726, HG/T 2877, HG/T4805
