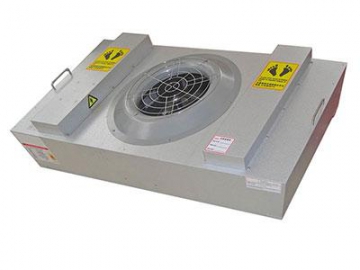

Terminal Fan filter units

Terminal Fan filter units
Terminal Fan filter units
Request a Quote
Recommended Applications

A high-efficiency air vent filter is a terminal filtration device applicable for all clean room classes. With the integrated structure, it is ideally suitable for compact structures that must be used in a clean room due to limited space. In addition, it is also applicable to the aluminum alloy keel structure clean room and other local purification equipment.

Features:
  • Three primary parts: Static pressure box, high efficiency filter, and diffuser plate. The high efficiency filter and static pressure box are attached as a compact structure.
  • A regulating valve is equipped at the air inlet of the static pressure box in order to ensure a stable airflow and pressure.
  • The air vent filter’s shell is made using a high quality cold-rolled steel and the surface is treated by electrostatically plastic spraying. The static pressure box is made of low carbon steel.
Optional size and technical parameters
Note: other sizes can be customized.
(1)Lateral Inflow
Type Air plenum HEPA Filter Size (mm) Air Flow (m³/h) Blast Pipe Size (A×B, mm) Blast Pipe Link (C×D, mm) Assemble Size (T×S×R×G, mm)
size (L×W×H, mm)
YJ-320 370×370×530 320×320×220 500 200×200 250×250 438×438
YJ-484 534×534×530 484×484×220 1000 320×200 370×250 588×588×394×294
YJ-610 660×660×460 610×610×150 320×250 370×300 716×716×358×358
YJ-820 87×650×460 820×600×150 1200 320×250 370×300 926×706×436×353
YJ-630 680×680×530 630×630×220 1500 320×250 370×300 736×736×368×368
YJ-726 776×534×530 726×484×220 400×200 450×250 832×590×416×295
YJ-915 965×660×460 915×610×150 400×250 500×300 1022×716×511×358
YJ-968 1018×534×530 968×484×220 200 500×200 550×250 1074×590×537×298
YJ-1220 1270×660×460 1220×610×150 500×250 550×250 1326×716×332×358
YJ-945 955×680×530 945×630×220 2200 500×250 550×300 1052×736×526×368
YJ-1260 1310×680×530 1260×630×220 3000 500×250 650×300 1336×736×455×368

(2)Roof Inflow
Type Air plenum HEPA Filter Size (mm) Air Flow (m³/h) Blast Pipe Size (A×B, mm) Blast Pipe Link (C×D, mm) Assemble Size (T×S×R×G, mm)
size (L×W×H, mm)
YJ-320D 370×370×530 320×320×220 500 200×200 250×250 438×438
YJ-484D 534×534×530 484×484×220 1000 320×200 370×250 588×588×394×294
YJ-610D 660×660×460 610×610×150 320×250 370×300 716×716×358×358
YJ-820D 87×650×460 820×600×150 1200 320×250 370×300 926×706×436×353
YJ-630D 680×680×530 630×630×220 1500 320×250 370×300 736×736×368×368
YJ-726D 776×534×530 726×484×220 400×200 450×250 832×590×416×295
YJ-915D 965×660×460 915×610×150 400×250 500×300 1022×716×511×358
YJ-968D 1018×534×530 968×484×220 200 500×200 550×250 1074×590×537×298
YJ-1220D 1270×660×460 1220×610×150 500×250 550×250 1326×716×332×358
YJ-945D 955×680×530 945×630×220 2200 500×250 550×300 1052×736×526×368
YJ-1260D 1310×680×530 1260×630×220 3000 500×250 650×300 1336×736×455×368
