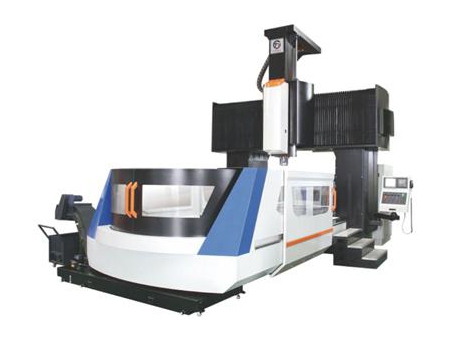

CNC Gantry Machining Center, Series LM-2013

CNC Gantry Machining Center, Series LM-2013
CNC Gantry Machining Center, Series LM-2013
CNC Gantry Machining Center, Series LM-2013
CNC Gantry Machining Center, Series LM-2013
CNC Gantry Machining Center, Series LM-2013
Request a Quote

Double Column Machining Center

The LM-2013 gantry CNC machine has a gantry width of 1400mm and a workbench of 2000×1000mm, which makes it ideal for loading as much as 3,000kg of machined materials at one time. It is a heavy duty lathe specially designed to machine large components for airplanes, automobiles, ships, and other heavy duty industries.

Parameters
Model LM-2013
Travels
X-axis travel (mm) 2000
Y-axis travel (mm) 1400
Z-axis travel (mm) 800
Distance from spindle nose to table center (mm) 70-870
Table (gantry) width (mm) 1400
Worktable
Worktable area (mm) 2000×1000
Maximum weight on table (kg) 3000
T-slot (width – number of slot x spacing) (mm) 7-22×150
Spindle
Standard spindle speed (rpm) 6000
Spindle taper BT50φ190
Spindle drive mode Belt drive
Spindle power (KW) 18.5
Feed
Cutting feed (mm/min) 8000
Rapid feed (m/min) 12/10/10
Linear guide rail width / number of tracks (mm) 2-45X2-45Y:Z box guideway
Others
Three-axis motor power (KW) 4.5/4.5/7.0
Positioning accuracy (mm) 0.035/1000
Repeatability (mm) 0.025
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 0.48
Power requirement (KVA) 35
Air pressure (bar) 6.5
Machine weight (t) 18
Machine dimension (mm) 5870×2630×3720
Components of gantry milling machine
  • Control system and motor
  • Box guideway
  • Mechanical spindle, gear drive
  • Chain-type tool magazine
