DS864-8-7A Electromechanical Lock

DS864-8-7A Electromechanical Lock
DS864-8-7A Electromechanical Lock
DS864-8-7A Electromechanical Lock
Request a Quote
Technical Specifications
Work voltage DC5V
Work current ≤ 0.3A
Power-on time 15S
Communication interface DO/DI
Wire material UL2464/26AWG/L2000
Work temperature -40 ~ 60°C
IP rating IP65 (front)
Material Zinc alloy: housing, handle
304 Stainless steel: cam
Q235: support

Instruction of Usage
1.Opening the handle, gray and orange wires are connected; Closing the handle, gray and orange wires are disconnected.
2.The stop height (the height from door plate to cam) can be changed by adjusting the number of washers.
3.This electromechanical lock is applicable to installation of different hole positions.

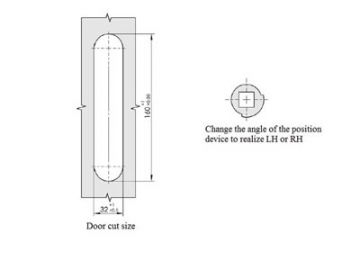

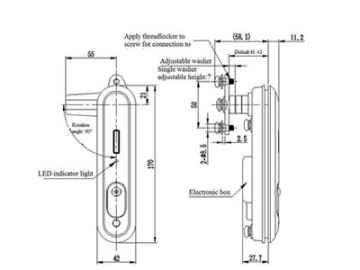

Drawing
