Request a Quote
  • Microphone Picture & Modle Number
  • Function & Technical Parameter

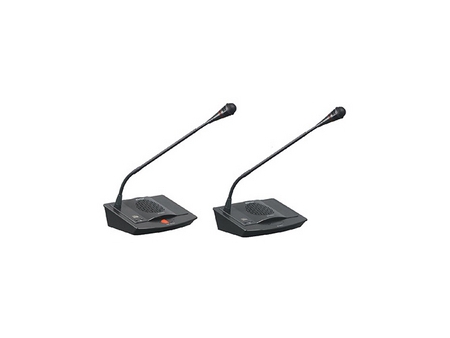

  • HT-3170c Chairman Unit HT-3170d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 216x53x100mm
  • Installation dimension:218x54mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Support discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-3180c Chairman Unit HT-3180d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 245x53x100mm
  • Installation dimension: 247x54mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Support Discuss, video & voting
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-7000Ac Chairman Unit HT-7000Ad Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 230x110x70mm
  • Installation dimension: 201 x98mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Support discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-7010C Chairman Unit HT-7010d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 256x90x60mm
  • Installation dimension: 227x86mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Support discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-7100c Chairman Unit HT-7100d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 230x110x70mm
  • Installation dimension: 201x98mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Discuss, video & voting
  • Built-in internal speaker
  • IC card/key press sign in option
  • Chairman with priority button

  • HT-7110C Chairman Unit HT-7110d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2Db
  • Dimension: 256x90x60mm
  • Installation dimension: 227x86mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Discuss, video & voting
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-7000Bc Chairman Unit HT-7000Bd Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity:-44 dB±2dB
  • Dimension: 150x135^53mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Support discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-7200C Chairman Unit HT-7200d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 245x145x55mm
  • Length of gooseneck: 350mm
  • N.W: 1.2kg
  • Discuss, video & voting
  • Built-in internal speaker
  • Key press sign in
  • Chairman with priority button

  • HT-7210C Chairman Unit HT-7210d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 245x140x48mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss & video & voting
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-7300c Chairman Unit HT-7300d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 245x145x55mm
  • Length of gooseneck: 350mm
  • N.W: 1.2kg
  • Discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-7310C Chairman Unit HT-7310d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 245x145x48mm
  • Length of gooseneck: 420mm
  • N.W: 1.2kg
  • Discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-7500c Chairman Unit HT-7500d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 165x135x60mm
  • Length of gooseneck: 420mm
  • N.W: 0.8kg
  • Discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-7600c Chairman Unit HT-7600d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 205x150x55mm
  • Length of gooseneck: 420mm
  • N.W: 0.9kg
  • Discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-7600Bc Chairman Unit HT-7600Bd Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 205x117x55mm
  • Length of gooseneck: 420mm
  • N.W: 0.9kg
  • Discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-7700C Chairman Unit HT-7700d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44dB±2dB
  • Dimension: 205x150x55mm
  • Length of gooseneck: 420mm
  • N.W: 0.9kg
  • Discuss, video & voting
  • Built-in internal speaker
  • Key press sign in
  • Chairman with priority button

  • HT-7800c Chairman Unit HT-7800d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 245x150x60mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Discuss, video & voting
  • Built-in internal speaker & LCD
  • IC card/Key press sign in option
  • Chairman with priority button

  • HT-7800Ac Chairman Unit HT-7800Ad Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 207x117x60mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss, video & voting
  • Built-in internal speaker & LCD
  • IC card/Key press sign in option
  • Chairman with priority button

  • HT-7810C Chairman Unit HT-7810d Delegate Unit
  • Frequency response: 40Hz-16KHz
  • Sensitivity: -44dB±2dB
  • Dimension: 207x117x60mm
  • Length of gooseneck: 420mm
  • N.W: 0.7kg
  • Support discuss & video
  • Support OLED display and timing
  • Chairman with priority button

  • HT-8200c Chairman Unit HT-8200d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 130x160x50mm
  • Length of gooseneck: 420mm
  • N.W: 0.8kg
  • Discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-8300c Chairman Unit HT-8300d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 200x114x45mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-8310c Chairman Unit HT-8310d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 150x170x67mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss & video
  • Built-in internal speaker
  • Chairman with priority button

  • HT-8320c Chairman Unit HT-8320d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 150x170x67mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss, video & voting
  • Built-in internal speaker
  • Chairman with priority button

  • HT-8400c Chairman Unit HT-8400d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44dB±2dB
  • Dimension: 207x117x60mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-3002c Chairman Unit HT-3002d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 210x120x55mm
  • Length of gooseneck: 420mm
  • N.W: 1kg
  • Discuss & video
  • Built-in internal speaker & LCD
  • Chairman with priority button

  • HT-816C Chairman Unit HT-816d Delegate Unit
  • Frequency response: 40Hz-16kHz
  • Sensitivity: -44 dB±2dB
  • Dimension: 165x135x75mm
  • Length of gooseneck: 420mm
  • N.W:0.9kg
  • Discuss & video
  • Built-in internal speaker
  • Chairman with priority button
Equipment and Function List
Model HT-7000 Main Unit HT-6600 Main Unit HT-7300 Main Unit
Discuss Video Vote Discuss Video Vote Discuss Video Vote
HT-3170c/d V V * V V
HT-3180c/d V V V V V
HT-7000Ac/Ad V V V V
HT-7010c/d V V V V
HT-7100c/d V V V V V
HT-7110c/d V V V V V
HT-7000Bc/Bd V V V V
HT-7200c/d V V V V V
HT-7210c/d V V V V V
HT-7300c/d V V V V
HT-7310c/d V V V V
HT-7500c/d V V V V
HT-7600c/d V V V V
HT-7600Bc/Bd V V V V
HT-7700c/d V V V V V
HT-7800c/d V V V V V
HT-7800Ac/Ad V V V V V
HT-8200c/d V V V V
HT-8300c/d V V V V
HT-8310c/d V V V V
HT-8320c/d V V V V V
HT-8400c/d V V V V
HT-7810c/d V * V * V V V
HT-3002c/d V * V * V V
HT-816c/d V * V * V V

V = Achieve the function without other equipment
* = Add video processor to achieve video camera auto-track function
• =Add voting processor to achieve voting function

Conference Microphone Unit HT-3900c/d,HT-3910c/d

  • HT-3900c/d
  • HT-3910c/d
  • Support discuss and camera auto-tracking function.
  • The system power supply for all microphone units is provided by the main unit at 24 safe voltages.
  • OLED display. Display current date and time when standby and show speaking time when microphone on (Count up or countdown option).
  • Built-in high-fidelity speaker and earphone jack. (HT- 3910c/d).
Technical Parameter
  • Connector: 8P-DIN
  • Headphone output: Mini Jack (HT-3910c/d)
  • Rec output: Mini Jack (HT-3910c/d)
  • Sound pick-up distance: 20-50cm
  • Frequency response: 40Hz-16KHz
  • Sensitivity: -44dB /-2dB
  • S/N ratio: 85dB
  • Length of Gooseneck Mic:42cm
  • Consumption: <2W
  • N.W.:HT_3900c/d: 0.7kg; HT-3910c/d: 0.83kg
  • Dimension: HT-3900c/d: 207 x 117 x 60mm; HT-3910c/d:210x138x52mm

Conference Microphone Unit HT-5800c/d, HT-5810c/d

  • HT-5800c/d
  • HT-5801c/d
  • HT-5810c/d
  • HT-5811c/d
  • Support discuss and camera auto-track function.
  • The system power supply for all microphone units is provided by the main unit at 24 safe voltages.
  • OLED display. Display current date and time when standby and show speaking time when microphone on (Count up or countdown option).
  • Support voting function (HT-5810c/d,HT-5811c/d).
Technical Parameter
  • Connector: 8P-DIN
  • Sound pick-up distance: 20-80cm
  • Frequency response: 40Hz-16KHz
  • Sensitivity: -44dB /-2dB
  • S/N ratio: 85dB
  • Consumption: <2W
  • Dimension: HT-5800c/d HT-5810 c/d:325x60x50mm HT-5801c/d HT-5811 c/d:304x63x53mm
  • N.W.: 0.56kg
