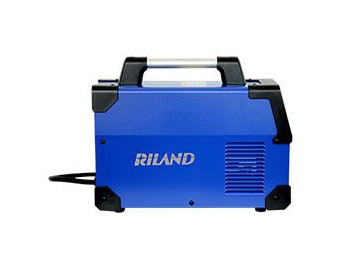

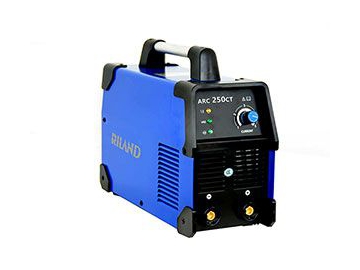

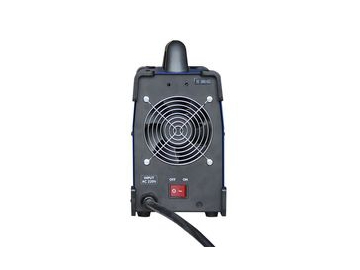

ARC 250CT

Features
  • Adopting mature MOS inverter technology;
  • Corner protectors reduce potential scratches and give a superior look;
  • Improved welding performance and arc stability, arc starting at low voltage;
  • Sufficient output power, allowing for long-time welding of Ø3.2mm stick electrodes, and can weld stick electrodes of up to Ø4.0mm;
  • Long extension cable of up to 20m;
  • Compact size, suitable for civil and light fabrication applications;

Specifications
Model ARC 250CT
Input voltage 1P/ 220V (±15%)
Frequency (Hz) 50/60Hz
Duty cycle (40℃) 30%
No-load voltage (V) 70V
VRD voltage 18V
Current adjusting range (A) 30-190A
Efficiency 85%
Power factor 0.70
Protection grade IP21S
Insulation class Class H
Anti-shock protection Class I
Electromagnetic Compatibility (EMC) A
Static characteristic Drooping characteristic
Cooling method Forced air cooling
Net weight (kg) 6.5
Dimensions (L×W×H) (mm) 365×172×320

Package Included

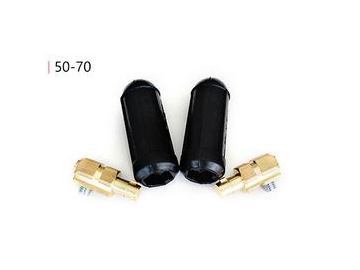

  • Welding cable quick connector, 2pcs

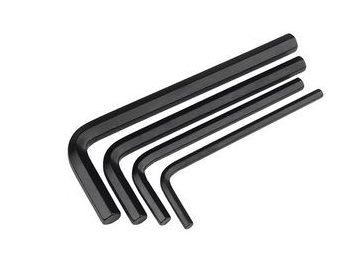

  • Allen key, 1pc

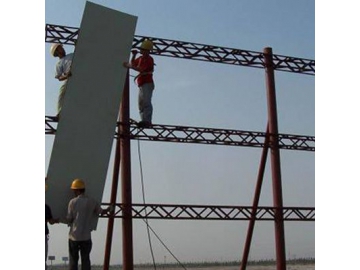

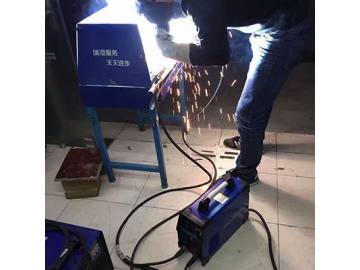

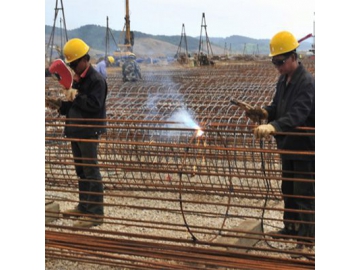

Applications

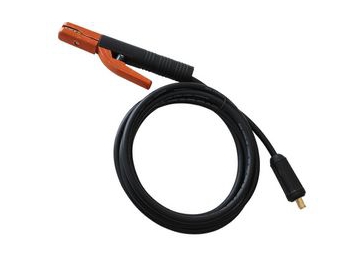

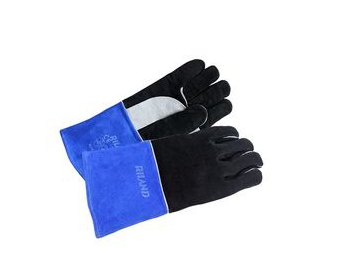

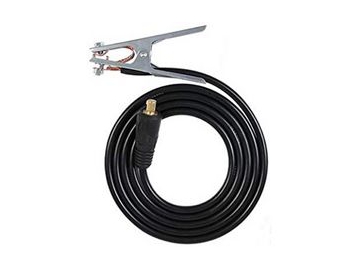

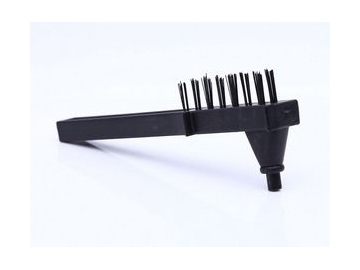

Optional Welding Accessories
