Tie-on Cable Label, PUR

Model: PUR

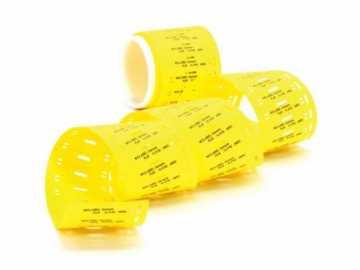

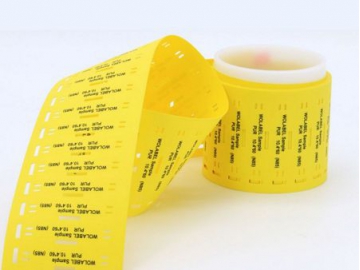

This tie-on cable label is a kind of cable identification markers made from thermoplastic polyether polyurethane (PUR), used to identify cables and wire bundles. The tie-on cable label is halogen free, flame retardant, hydrolysis and micro-organism resistant. Our tie-on cable labels adopt raw materials in full compliance with the requirements of UL94-V0, and are provided in form of rolls, facilitating for printing process with thermal transfer printer.

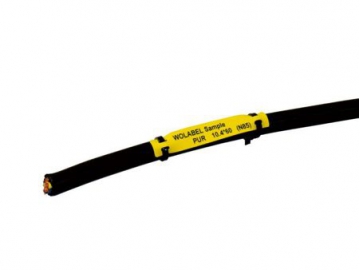

The cable labels can be simply attached to cables and wire bundles by means of cable ties after being removed from the carrier. It is recommended to use thermal transfer printer and WO-80500BK thermal transfer ribbon to satisfy the SAE AS 81531 and MIL-STD-202F printing standards.

Features

Color: yellow, white
Material: thermoplastic polyether polyurethane (PUR)
Operating temperature: -25°C up to 80°C
Storage: cool and dry in original packaging

Dimensions

Order Code	Color	Pack Size (pcs/coil)		Marker High (mm)	Marker Length (mm)	Printable Range (mm)
Order Code	Color	Pack Size (pcs/coil)		Marker High (mm)	Marker Length (mm)	High	Length
PUR-M-4H-10-60-1K-W	White		1000	10	60	6	42
PUR-M-4H-15-75-1K-W	White		1000	15	75	11	52
PUR-M-4H-25-75-0.5K-W	White		500	25	75	21	52
PUR-M-4H-10-60-1K-Y	Yellow		1000	10	60	6	42
PUR-M-4H-15-75-1K-Y	Yellow		1000	15	75	11	52
PUR-M-4H-25-75-0.5K-Y	Yellow		500	25	75	21	52

Technical Data

Properties	Test Method	Typical Value
Hardness	DIN 53505	58 Shore D
Density	DIN 53475	1.27g/cm³
Tensile strength	DIN 53504	30MPa
Ultimate elongation	DIN 53504	400%
Stress at 20% elongation	DIN 53504	13MPa
Stress at 100% elongation	DIN 53504	19MPa
Stress at 300% elongation	DIN 53504	33MPa
Tear strength	DIN 53515	110N/mm
Abrasion loss	DIN 53516	30mm³
Compression set at room	DIN EN ISO 815	30%
Temperature
Compression set at 70°C	DIN EN ISO 815	45%
Notched impact strength (Charpy) 23°C	DIN EN ISO 179	50kj/m²
