Description
This GS-20-1-J automatic dual direction drilling cutting machine is used for drilling and cutting processes in the production of dining tables and chairs, beds and other furniture. This machine is equipped with 2 diagonal drilling motors, 2 horizontal drilling motors, 2 vertical drilling motors and 2 cutting motors, with the motors used to drill and cut furniture on dual ends, simultaneously.

Parameters
Cutting motor 1.5KW*2
Drilling motor 1.5KW*4
Diagonal drilling motor 1.5kw*2
Maximum drilling size 300-2000mm
Maximum manufacturing width 30-150mm
Maximum manufacturing thickness 10-50mm
Machine size(length*width*height) 2200×1800×2000mm
Weight 1500kg
Product details show

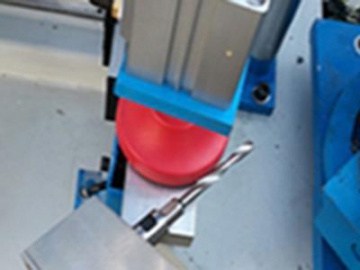

  • Diagonal drilling
  • Diagonal drilling

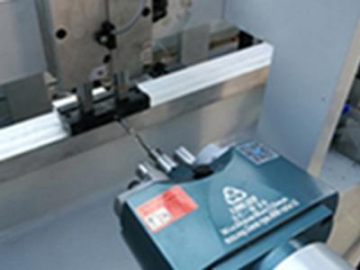

  • Horizontal drilling

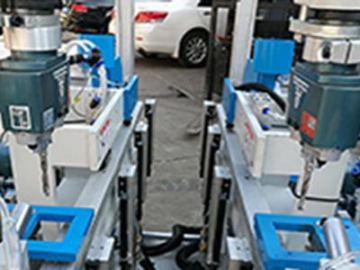

  • Vertical drilling

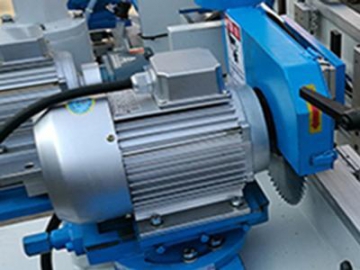

  • Cutting
Characteristics
  • This machine is equipped with 2 diagonal drilling motors, 2 horizontal drilling motors, 2 vertical drilling motors and 2 cutting motors.
  • This machine is easy to control.
  • The machine is designed with a compact, space saving structure.
  • The user interface is clear and easy to operate.
  • The high-quality drilling motors, saw webs and corresponding devices make operation smooth and stable.
  • The electric circuit is designed to showcase its quality, and makes operation simple and convenient.
