Alloy and Carbon Steel Eye Hoist Hook Manufacturer

Alloy and Carbon Steel Eye Hoist Hook

Request a Quote

About Us: http://shenli-rigging.com/3-7-eye-hoist-hook.html

Features
● G70 eye hoist hook material: alloy steel;
● G43 eye hoist hook material: carbon steel;
● It is forged and heat treated.
● Ultimate load is 5 times the Working Load Limit.

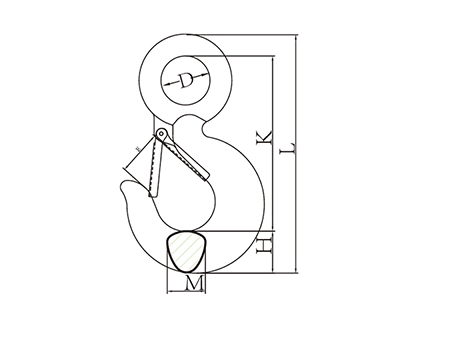

Parameters (Unit: mm)

Item code	Weight (KG)	Alloy Steel		Carbon steel		D±0.6	E±2	H±1.5	K±2.5	M±5	L±3
Item code	Weight (KG)	Working load limit (t)	Breaking load (t)	Working load limit (t)	Breaking load (t)	D±0.6	E±2	H±1.5	K±2.5	M±5	L±3
SLR-130	0.21	0.75	3.75	0.5	2.5	16.5	19	17	72	16	97
SLR-130	0.28	1	5	0.75	3.75	19	22	19	82	16	110
SLR-130	0.4	1.5	7.5	1	5	23	23	21	93.5	17.5	125
SLR-130	0.65	2	10	1.5	7.5	28	24	26	103	21	140.5
SLR-130	0.81	3	15	2	10	31	27.5	28	119	23	162
SLR-130	1.75	5	25	3	15	39	33	37	146	30	201
SLR-130	3.77	7	35	5	25	51	40	46.5	186.5	38	256
SLR-130	6.8	11	55	7.5	37.5	62	51	57	231.5	46	317
SLR-130	9.96	15	75	10	50	73	57	70	260	55	360
SLR-130	15.33	22	110	15	75	89	75	76	318	68.5	434
SLR-130	27.2	30	150	20	100	90	82	91	360	70	495.5
