YC65-470 snap lock roofing machine forms continuous roofing panels and eliminates the need for screw fixing, avoiding rust around the screws and shortening installation time. This roofing machine is capable of profiling 0.4-0.8mm thick materials with a maximum production speed of 30m/min.

Samples
Profile Drawing
Specifications
Model YC65-470
Dimension 7000*1500*1500mm
Motor Power 5.5kW
Hydraulic Power 2.2kW
Forming Steps 17steps
Forming Speed 10-15m/min
Voltage 380V/50HZ/3PH
Material Thickness 0.4-0.8mm
Rib Height of Roofing 65mm
Effective Cover Width 470mm
Feeding Material Width 600mm
Control System PLC Control
Details

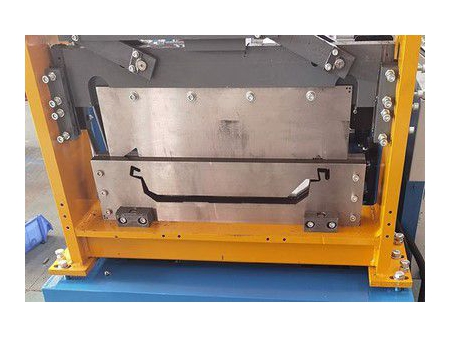

  • Cutter is made by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.

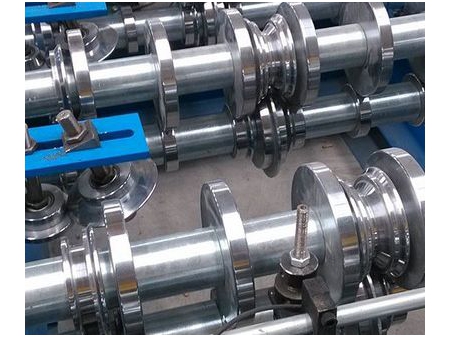

  • Roller is made by high quality 45# steel with CNC lathes. Hard chrome plating is optional for long service life. Body frame is made of 400# H bean by welding

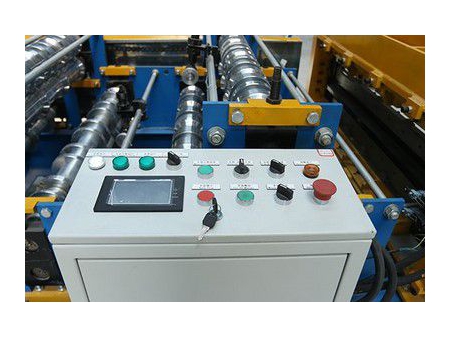

  • PLC can be chosen from Schneider, Siemens, and Delta

  • Auto Seamer

Main Accessories
  • Main Machine
  • 5 Tons Manual Uncoiler
  • Hydraulic Forming Cutter (Material:Cr12Mov with heat treatment)
  • Hydraulic System
  • PLC Computer Controlling System with touch Screen ( Brand: Schneider )
  • Manual Pre-cutter OR Hydraulic Pre-cutter
  • Tools
  • Hand Seamer
  • Auto Seamer
  • Operation Manual
Transportation Package
