The cylindrical lens mount can be used in laser processing, optical experiments and automatic measurement and testing and other places that require to assemble cylindrical lens.

  1. WN01CL
  2. WN02CL
Specification

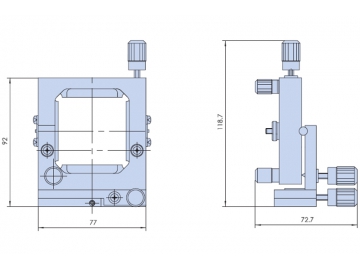

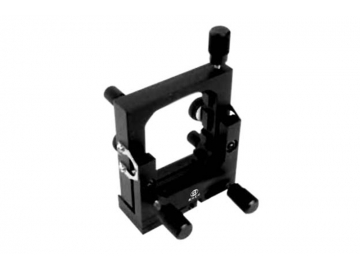

Model WN01CL
Two-dimensional tilt adjustment range ±4°
Rotating adjustment range ±5°
Mounting length 50-50.8 mm
Mounting width 60. 5mm
Features
  • The cylindrical lens can be adjusted around two-dimensional orthogonal and coplanar axes.
  • The cylindrical lens can be rotated around the light axis.
  • Two types of plano-convex or plano-concave cylindrical mirrors can be mounted. The cylindrical mirror can be placed horizontally or vertically.
Specification

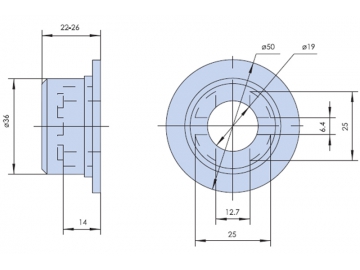

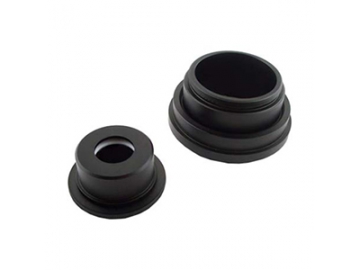

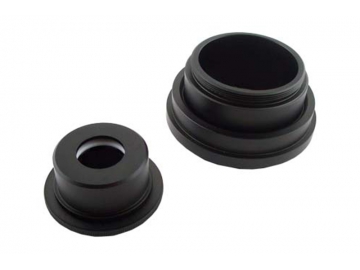

Model WN02CL
Mounting size 6.4x25
12.7x25
Weight 0.05 kg
Features
  • The lens is clamped by tightening screw.
  • Different sizes of cylindrical lens can be mounted.
  • Teflon made gasket can protect lenses effectively.
