5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A

5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
5W Automated Assembly Line UV Laser Marking Machine, MUV5-A-A
Request a Quote

Applicable Materials
No.MUV5-A-A laser marking machine is applicable for materials like papers, PVC, rubber, wood, glass, ceramics, plastics, PET, HDPE, leather and so on.

Model Laser power (W) Cooling methods Marking area(mm) Working distance(mm) Minimum line width
(mm)
Minimum character
(mm)
Graphic format
supported
Supply
voltage
Dimension(mm) Weight
(Kg)
Working
environment
Total power
(Kw)
M U V 5 - A - A 5 Air Cooling 100X100
150X150 300X300
184 0.02 0.2 PLT、DXF 、JPG、PNG、BMP AC220V±10%, 50/60Hz 670 X 550 X 1400 45 Temp:10~ 35°C , Humidity:5~85%. No condensate water, no dust or less dust. 1.2

Laser Processing Examples:

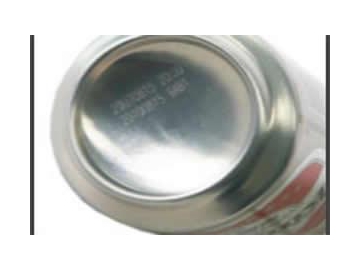

  • Can laser marking

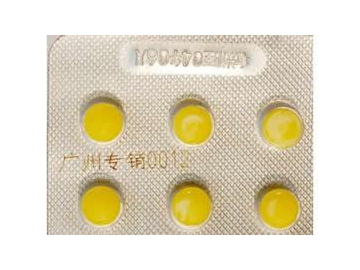

  • Drug packaging laser marking

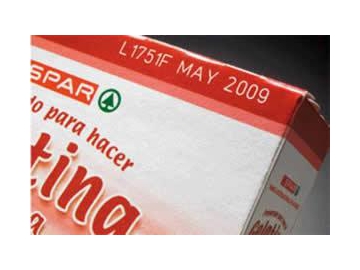

  • Food packaging laser marking

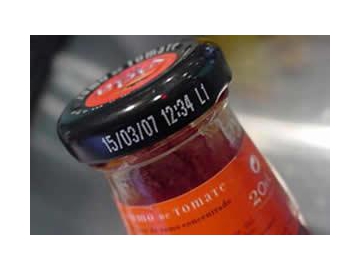

  • Metal caps laser marking
  • Metal filling drinks laser marking

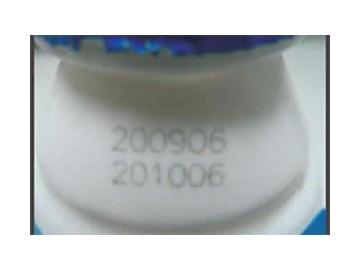

  • Plastic bottle laser marking

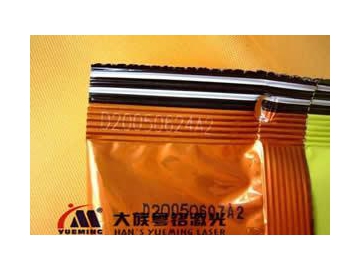

  • Plastic packaging laser marking

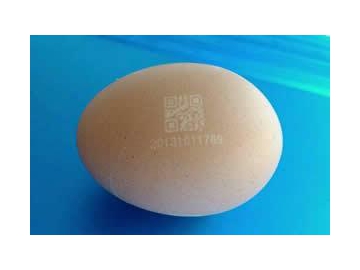

  • QR code laser marking

Product Feature
1. Stable performance: This laser marker uses an imported ultraviolet laser system and high speed numerical galvanometer. The embedded flying marking controller also features a highly integrated system, low power consumption, impact structure and stable performance.
2. Easy operation: Easy to use touch screen and HMI..
3. Small space occupation: The optical cavity and control box are integrated and installed on the lifting platform, which can be adjusted up and down, front and rear, or face up and face down in order to perfectly fit onsite assembly requirements.

Powerful function
1. It supports vector and graphic import of DXF and PLT;
2. It supports dot-matrix font and independently developed fonts;
3. It supports super-long marking, pipe sectional triggering and various marking of bar code and QR code;
4. It supports skipping marking, alarming and other I/O auxiliary functions;
5. It supports automatic generation of date code, time code and serial number code, automatic number skipping and other functions to satisfy client’s needs in different fields.
