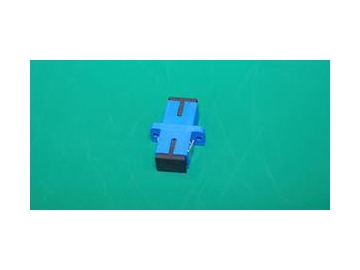

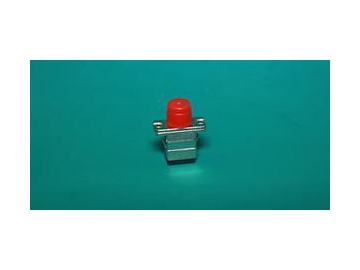

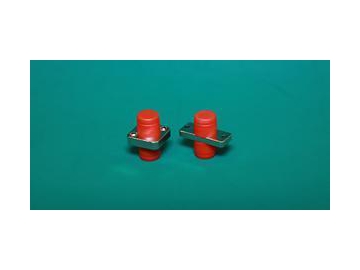

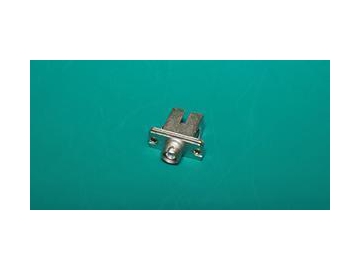

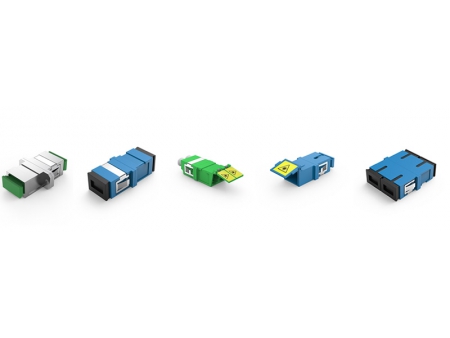

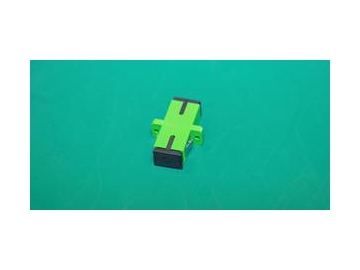

Fiber Optic Adapter

Fiber Optic Adapter
Fiber Optic Adapter
Fiber Optic Adapter
Fiber Optic Adapter
Fiber Optic Adapter
Fiber Optic Adapter
Request a Quote

Applications
1. Optical fiber communication
2. Fiber to the home (FTTH) data processing network
3. Telecommunication equipment
4. LAN (local area network)
5. CATV and closed-circuit television

Performance index
Product type FC SC LC ST E2000
Insertion loss (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Repeatability (dB) ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Interchangeability (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Ferrule material Ceramics
Insert and draw frequency (times) ≥500
Tension resistance (g) 200~600
Working temperature (℃) -40~80

Functional characteristics
1. Outstanding repeatability and interchangeability
2. Excellent high and low temperature resistance, long service life
3. With a high quality ceramic ferrules, the insertion loss is low.
4. High precision of the reflection loss

Xinhaixun offers customers a variety of fiber optic passive components, a specialized fiber optic adapter manufacturer and supplier, we provide several types like FC fiber adapter, SC fiber adapter, LC optical adapter, ST optical adapter. we are offering a wide range of fiber beam splitters, optical patch cable, optical coupler, WDM, MPO connector. Use quality manufacturing and testing equipment, we provide quality optical fiber adapter component for fiber optic communication and networking applications.
