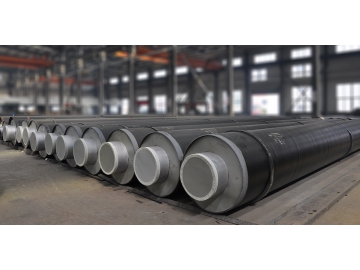

The steam pre-insulated piping system we engineer at WANLI PIPELINE is designed for underground distribution of superheated steam, saturated steam and other high temperature, high pressure fluid mediums, which can be widely used in district heating, industrial manufacturing areas. The piping system was researched at WANLI PIPELINE based on the national standard. Compared to outdated, costly, less effective, etc. traditional piping system, it is more economical and has higher quality.

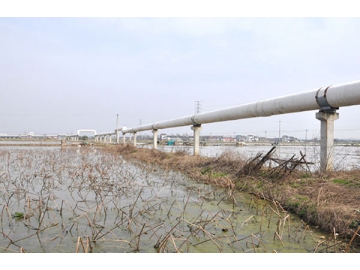

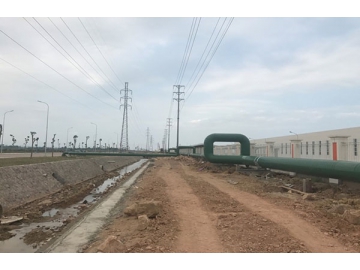

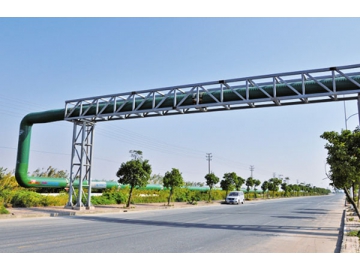

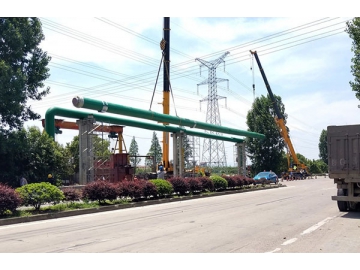

Applications
Distribution mediums Steam etc. Designed pressure ≤2.5MPa
Service life 30 years Designed temperature ≤350℃

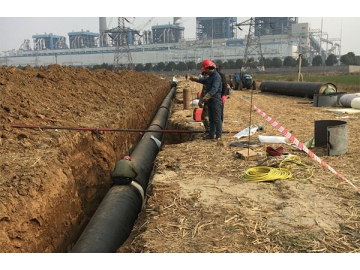

Used spot Underground, it can be buried under the road or green belt and has no effect on passing vehicles and vegetation.
Construct

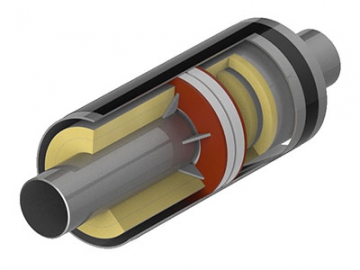

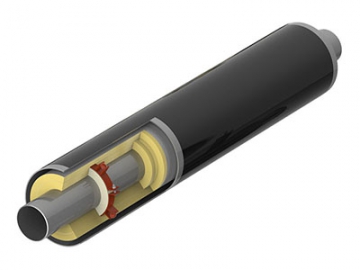

The Steam pre-insulated piping system is composed of a steel carrier pipe, glass wool, aluminum silicate needle blanket, or nano aerogel soft insulation, microporous calcium silicate hard insulation. The outer layer insulation is protected by spiral steel outer jacket which is coated with fusion bonded epoxy, polyurea, epoxy coal tar pitch, or 3PE.

Features
  • All pipes and fittings are prefabricated at WANLI’s shop, which means that the overall time required for a project can be reduced by minimizing the risk of weather delays and reducing the required labor to install a system.
  • The entire pipeline adopts a fully enclosed structure and all the pipeline components are arranged in the outer jacket, which means safe and reliable.
  • The pipeline has a long service life of 30 years and is easy to maintenance.
  • WANLI PIPELINE provides versatile solutions. It can be manufactured in configurations to adapt to virtually any application.
  • It is Drainable and Dryable.
Fittings

WANLI PIPLINE is a leading manufacturing of pre-insulated piping systems. We can provide a complete steam pre-insulated piping system consisting of pipes and fittings to your specifications.

Fittings Specs
    1. Straight pipe

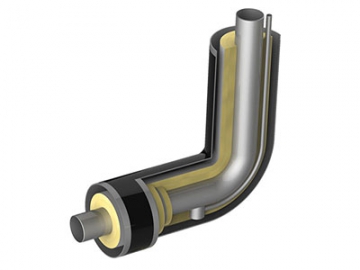

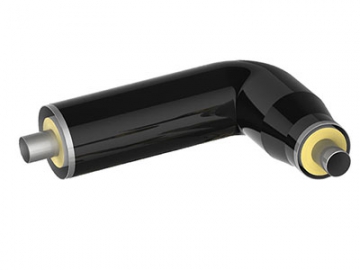

    1. Elbow pipe

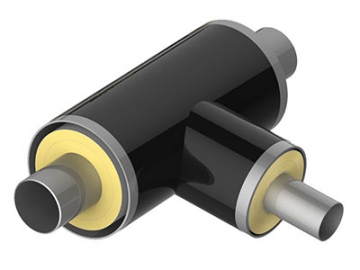

    1. Tee branch
    1. Steam traps
    1. Fixed support

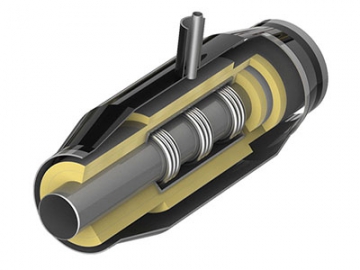

    1. Compensator

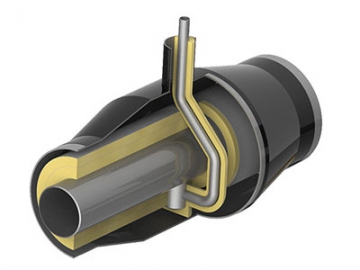

    1. Elbow pipe with traps
    1. Energy-saving rainhat
Technical specs
Steam Pre-insulated Piping System specification sheet
DN[mm] Carrier pipe Dy×s[mm] Insulation thickness[mm] Outer jacket Dy×s[mm] Delivered length [m]
50 57*3.5 60 219*6 6
65 76*4 80 273*6 6
80 89*4 90 325*6 12
100 108*4 100 377*7 12
120 133*4.5 110 426*8 12
150 159*4.5 110 426*8 12
210 219*6 120 529*8 12
250 273*7 130 630*8 12
300 325*8 140 720*8 12
350 377*9 150 820*10 12
400 426*10 160 920*10 12
450 478*10 170 920*10 12
500 530*10 170 1020*10 12
600 630*10 180 1120*10 12
700 720*10 180 1220*10 12

Note: above parameters are theorectical value and the subject to actual samples. All products can be customized to customer demands.
