Cargo Truck 4×2

Cargo Truck 4×2
Request a Quote

Heavy Duty Truck Manufacturer in China

Offer tractor unit, dump truck, cargo truck, concrete mixer truck, bulk cement truck, tanker truck, etc.

This product has been discontinued and removed from our shelves.

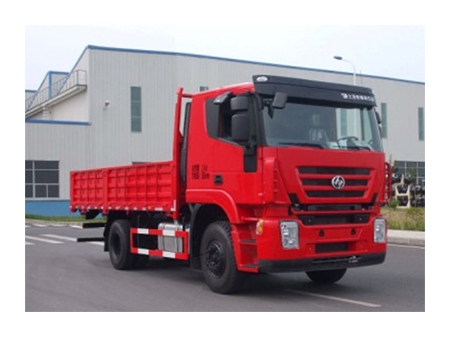

Our 4×2 cargo truck is equipped with WD615.56 engine and adopts German ZF CQ8111D rotary valve steering gear. It conforms to Euro II emission standards, thus meeting environmental standards. With great durability, comfortable cab, and high visibility, this cargo truck is an ideal choice for you.

Technical Parameters
Hongyan XinDaKang Euro II 4×2 Cargo Truck
ModelCQ1163TLG461
Driving type4×2
Total mass kg16000
Curb weight kg8000
Rated loading weight kg7805
Total mass of trailer kg10000
Wheelbase mm4600
Outline dimensions mmLength8687
Width2500
Height3045,3637
Max. internal dimensions of body mmLength6252
Width2368
Height600
Max. speed km/h94
Max. gradeability %32
Fuel consumption under certain conditions L/100km24
Engine modelWD615.56
Engine power kw (Ps)193 (263 Hp)
Max. torque/speed (N.m/(r/min))1100/1300~1600
ClutchSingle plate Φ430mm large diaphragm spring clutch
Transmission9JS119
CabHongyan XinDaKang cab
Number of steel plate spring (front/rear)8/10 6
Steering gearGerman ZF CQ8111D rotary valve steering gear
Driving axleFull floating, double reduction with differential Steyr cast steel driving axle
Tire11.00-20,12.00-20, 11.00R20,12.00R20
Emission standardEuro II

SAIC HONGYAN Automotive Co.,Ltd is a China-based cargo truck manufacturer. Some of our popular products include cargo trucks, tractor unit, special vehicles, etc. In order to guarantee our product quality, we implement ISO9001:2000 quality management system and strictly monitor each process, from raw material selection, to final delivery. Meanwhile, we also take effective measures to keep down our production costs. As a result, our high quality, competitively-priced heavy trucks are increasingly in demand in the Middle East, Africa, Central America, and Southeast Asia.

If you are in need of any of our heavy duty trucks, please contact us for more information!
