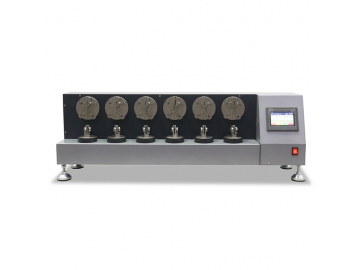

As one popular style of shoe sole flexing tester, the fibreboard insole flex tester is developed to test the flexing resistance of the insole material for leather shoes, leisure shoes, jogging shoes, and some others.

Under certain load, the test piece is flexed leftwards and rightwards with the angle of 90° continuously until the fibreboard is damaged. The bending times of sole is a good reference for judging the flex resistance of the fibreboard. Equipped with 1 spanner, our shoe sole flexing tester is a piece of useful footwear testing equipment for the shoe manufacturer to compare and select the fibreboard for the insole.

Technical Parameters of Shoe Sole Flexing Tester

ModelGT-KB07 fibreboard flex testing machine
Test piece size80×10mm
Upper fixture6pcs

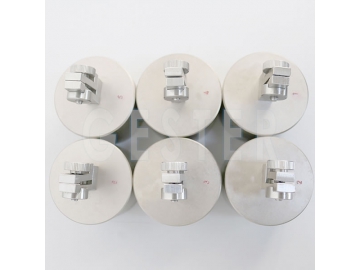

Weights with lower fixture2kg×6pcs
Bending speed60rpm
Bending angle180 degree
Counter6-digit LCD
Weight80kg
StandardsQB/T 1472, BS 5131: 4.2, SATRA PM3, PM4, PM5, PM6, PM15, PM16
