Bag Making Machine with Zipper Attachment & Hanger Attachment Device
Request a Quote
RT700D Bag making machine can produce PE/PP attached string zipper bags full automatically, and is especially suit for produce zippered garment bags. When it works, different types of zipper profiles thermal bonded onto the flat film and then turn into zipper bags.
It’s worth mentioning equipped with hanger attachment device, this machine can attach the zipper onto the zipper bags automatically, saving a lot labor cost and time.

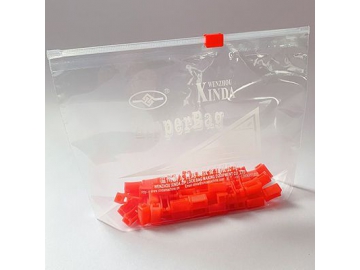

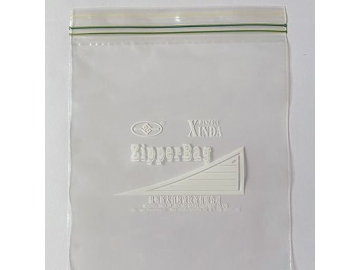

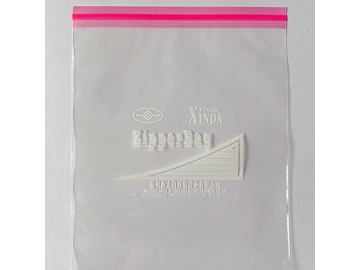

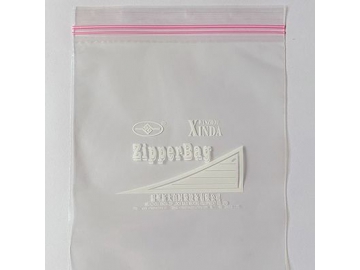

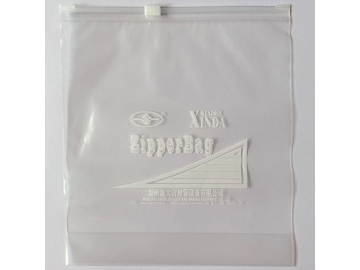

Certainly, RT700D bag making machine can also produce slider zipper bag, single-lock zipper attached bags, double-lock zipper attached bags, pouch zipper bags and other re-sealable bags.
Main Technical Parameters| Model | RT-700D |
| Production Speed | 40-100 piece/minute |
| Width of bag | ≤630mm |
| Length of bag | ≤650mm |
| Thickness of Film | 0.03-0.07mm(one layer) |
| Heater Power | 3.0kw |
| Total Power | 12.5kw |
| Main Motor Power | 3kw |
| Overall dimension | 6800 x 1400 x 1850 mm |
Standard Configurations
- EPC film unwinding unit
- Mouth & Bottom Gusset
- Zipper Attachment Unit
- Ultrasonic sealing device
- Hanger Attachment Device system
- Cut on rubber roller by Iron knife
- Swinging arm type transmission
- Omron PLC computer controller system
- Panasonic servomotor and servopack
- Delta frequency inverter
Optional Devices
- Auto worktable
- Ultrasonic sealing device
- Chiller
- Triangle folding device.
